Shop GARANT

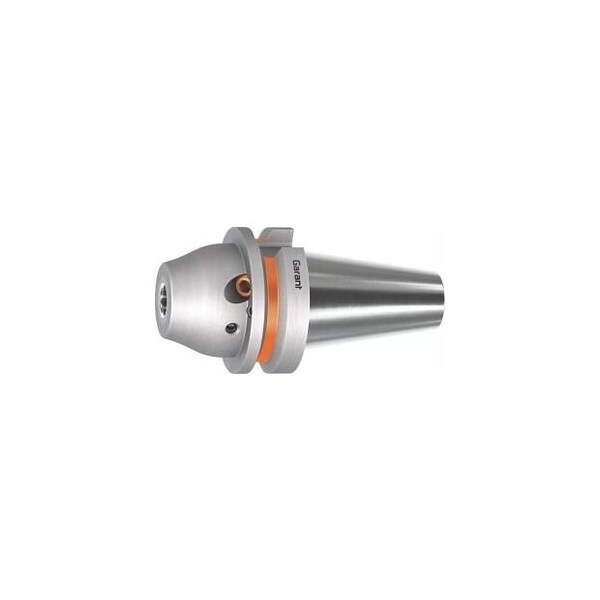

Master Chuck Hydraulic Chuck, form ADB, BT 40 short, Clamping Diameter: 6mm

  • Mfr # 303480 6

  • Zoro # G314774236

product price:
$
557.99
/ea
Free Shipping & Returns

Key Features

Balance Quality
G 2.5 at 25,000 rpm
Clamping Dia.
6 mm
Cooling Channel Bore
No
Balluffchip Bore
Yes
Dia.
26 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
303480 6
Zoro #
G314774236
UPC #
-
Country of Origin
Germany
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
No
Balluffchip Bore
Yes
Item
Hydraulic chuck
Concentricity
≤ 3 µm
Shape
ADB
Projection
58 mm

Description

Particularly suitable for highly dynamic milling applications. optimized outer contour using FEM finite element method ->, robustness thanks to max. rigidity, longer tool life, higher metal removal rate, suitable for all machining strategies. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10mm. Reducing adapters can be used. Temperature resistant up to 170 DegC for 4 hours. Allows for up to 10x more clamping operations compared with a standard hydraulic chuck. Very low tightening torque of the clamping screw - easy handling. Patented new hydraulic clamping system - reliable, durable premium concentricity. Application: Universally designed for roughing and finishing operations. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs AB No. 308600 308802, AB pull stud wrenches No. 308820 / 308835, Reducing sleeves No. 302135 302187. Clamping Dia D1: 6 mm Overhang dimension A: 58 mm Dia D2: 26 mm External Dia D: 42 mm
