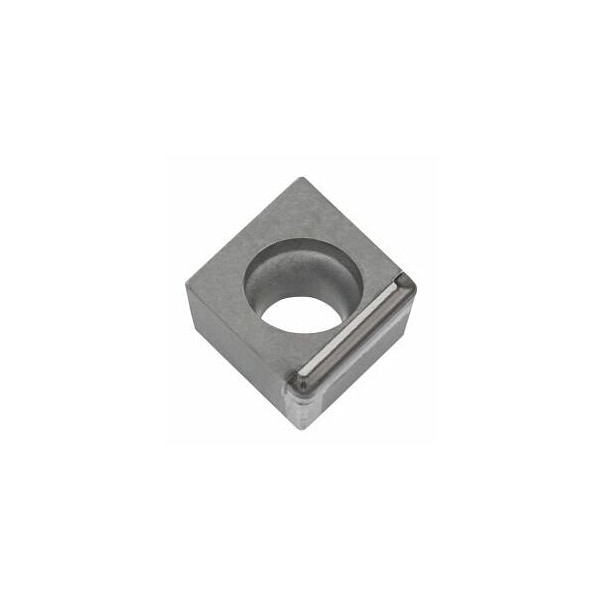

PCD Turning Insert, Diamond, CCGT09T308FR
Mfr # 265823 TWN
Zoro # G714822698
product price: $198.99
/ea
Free Shipping & Returns
Key Features
Insert Thickness
2.5 mm
Insert Style
CCGT
Cutting Depth
0.5 mm
Grade
PCD
ISO Number
CCGT 09T308 FR
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265823 TWN
Zoro #
G714822698
UPC #
-
Country of Origin
Germany
Dimensions
Insert Thickness
2.5 mm
Cutting Depth
0.5 mm
Min. Cutting Depth (ap min)
0.5 mm
Corner Radius
0.8 mm
Max. Cutting Depth (ap max)
7.5 mm
Details
Insert Style
CCGT
Grade
PCD
Item
Indexable Insert for Turning
ISO Number
CCGT 09T308 FR
No. of Edges
1
Cutting Edge Version
TWN
Insert Material
PCD
Inscribed Circle
3
Insert Shape
80 Degrees Diamond
Rake
6°
Cutting Conditions
Continuous
Insert Application
Roughing
Description
PCD Polycrystalline diamond, fine grain. Roughing, stable cutting edge for large cutting depths. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge TWN Cutting depth ap: 0.5 7.5 mm Feed f: 0.05 0.5 mm/rev. Cutting speed vc for alu < 10 % Si: 400 3500 m/min Cutting speed vc for non-ferrous metals: 300 2200 m/min
