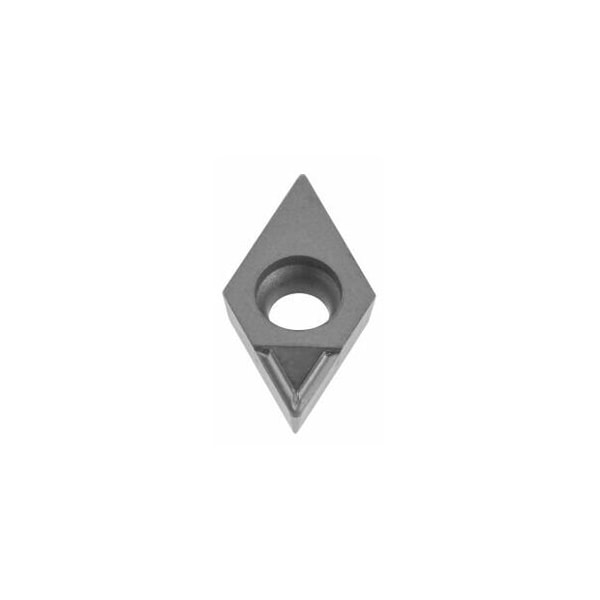

PCD Turning Insert, Diamond, DCGT11T304FN
Mfr # 265852 TWM
Zoro # G114821772
product price:Â $125.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
55 Degrees Diamond
Insert Style
DCGT
Inscribed Circle
3
Grade
PCD
Corner Radius
0.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
265852 TWM
Zoro #
G114821772
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.4 mm
Cutting Depth
0.2 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.2 mm
Max. Cutting Depth (ap max)
2.5 mm
Details
Item
Indexable Insert for Turning
Insert Shape
55 Degrees Diamond
Insert Style
DCGT
Inscribed Circle
3
Grade
PCD
Insert Material
PCD
Insert Application
Roughing Finishing
Rake
6 deg
ISO Number
DCGT 11T304 FN
Cutting Edge
TWM
Cutting Conditions
Continuous
Cutting Edge Version
TWM
No. of Edges
1
Description
PCD Polycrystalline diamond, fine grain. General machining, stable cutting edge for high metal removal rates. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge TWM Cutting depth ap: 0.2 2.5 mm Feed f: 0.05 0.3 mm/rev. Cutting speed vc for alu < 10 % Si: 400 3500 m/min Cutting speed vc for non-ferrous metals: 300 2200 m/min
