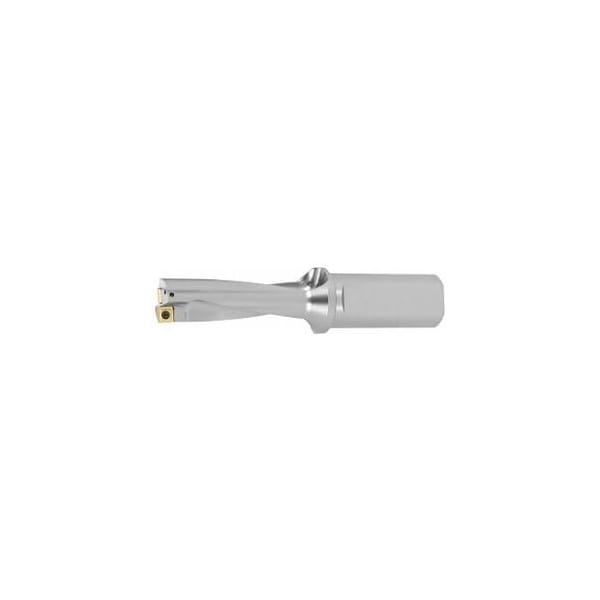

Power Drill Indexable Drill, 3XD, Diameter: 18.5 mm
Mfr # 234005 18,5
Zoro # G215355831
product price:Â
$
441.99
/ea
Free Shipping & Returns
Key Features
Diameter
18.5 mm
Series
HiPer-Drill
Clamping Screw
231999 5IP1 (0.2 Nm)
Version
3 x D
Overall Length
99 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 234005 18,5
- Zoro #
- G215355831
- UPC #
- -
- Country of Origin
- Bulgaria
Dimensions
- Diameter
- 18.5 mm
- Overall Length
- 99 mm
- Size
- 10 - 10.49 mm
- Reach Length
- 32 mm
- Shank Length
- 48 mm
Details
- Item
- Indexable Drill
- Series
- HiPer-Drill
- Clamping Screw
- 231999 5IP1 (0.2 Nm)
- Version
- 3 x D
- Coolant Through
- Yes
- Shank
- ISO 9766
- No. of Cutting Edges
- 2
Description
The helical coolant ducts ensure very high stability, since they do not weaken the core of the drill. Bore tolerance: -0.1 / +0.3 mm Description: For maximum performance and dimensional accuracy. Even for very difficult drilling situations up to 5xD. Suitable for: Inserts SOGX 060305. Note: Other intermediate sizes in 1/10 increments available on request. Overhang LA: 75 mm Shank 0 Ds: 25 mm Shank length Ls: 56 mm Maximum adjustment limit Vmax: 0.25 mm ISO code indexable insert: SOGX 060305 Pack of insert screws: 239700 6IP2 0.6 Nm
