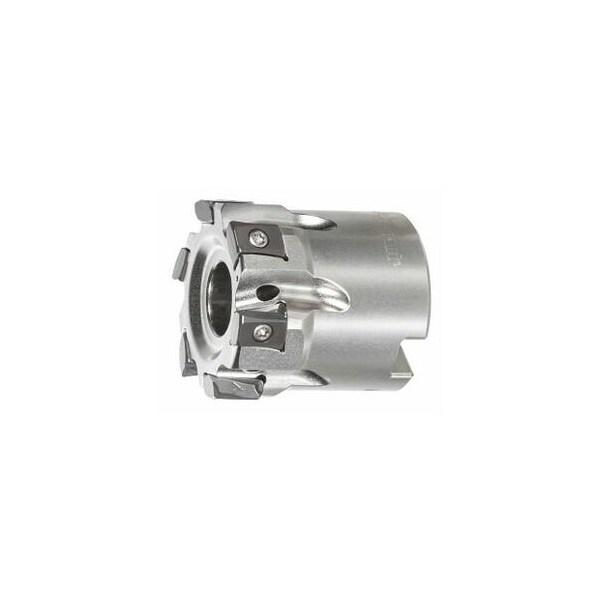

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Bore, 40mm Diameter, 6 Inserts
Mfr # 215968 40/6
Zoro # G016120997
product price: $582.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219868 2 (8IP; 1.2 Nm)
Series
Power Tang
Cutting Dia.
40 mm
Overall Length
40 mm
Cutting Angle
90°
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215968 40/6
Zoro #
G016120997
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
40 mm
Overall Length
40 mm
Mounting Bore Dia.
16 mm
Max. Cutting Depth
8 mm
Shank Size
16
Free length
40 mm
Details
Insert Screw
219868 2 (8IP; 1.2 Nm)
Series
Power Tang
Item
End / face mill
Cutting Angle
90°
Shank Type
With Bore
Dia/No. of Cutting Edges
40 mm/6
Coolant Through
Yes
Number of Teeth
6
Tool Exchange
PowerCard
Milling Application
Corner milling
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum cutting depth ap max: 8 mm Overall length Ltot: 40 mm Mounting bore : 16 mm suitable indexable insert: LO.U0904.. Pack of insert screws: 219868 2 8IP- 1.2 Nm
