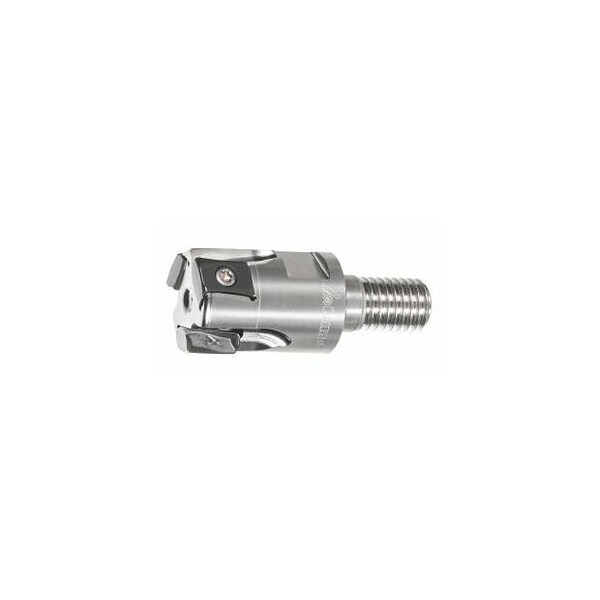

Power Tang Square Tangential Shoulder Mill, Wide Pitch, Threaded Shank, 20mm Diameter, 3 Inserts
Mfr # 215962 20/3
Zoro # G316120994
product price:Â
$
375.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
20 mm
Series
Power Tang
Overall Length
28 mm
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 215962 20/3
- Zoro #
- G316120994
- UPC #
- -
- Country of Origin
- Sweden
- Item
- End / face mill
- Series
- Power Tang
- Cutting Angle
- 90°
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Milling Application
- Corner milling
- Dia/No. of Cutting Edges
- 20 mm/3
- Mounting Thread
- M10
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Shank Type
- With Threaded Shank
- Number of Teeth
- 3
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum cutting depth ap max: 8 mm Overall length Ltot: 28 mmD1 h6: 10.5 mmD2: 18.5 mm Mounting thread M: M10 suitable indexable insert: LO.U0904..
