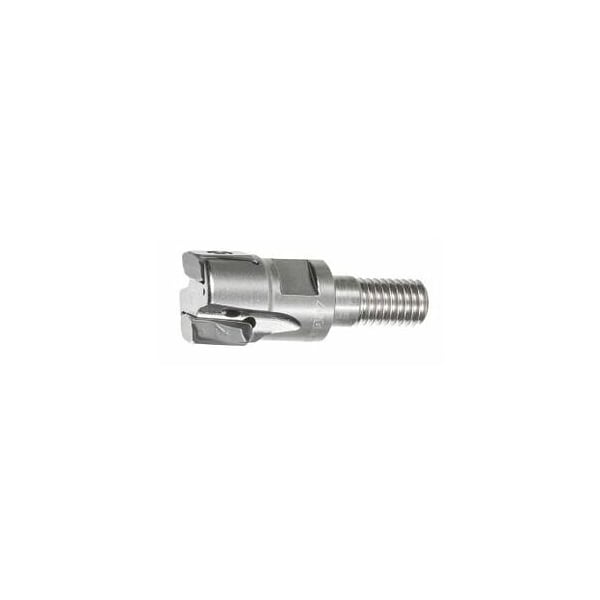

Power Tang Square Tangential Shoulder Mill, Wide Pitch, Threaded Shank, 16mm Diameter, 2 Inserts
Mfr # 215962 16/2
Zoro # G616120939
product price:Â $332.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
16 mm
Series
Power Tang
Overall Length
23 mm
Cutting Angle
90°
Insert Screw
219868 1 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215962 16/2
- Zoro #
- G616120939
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 16 mm
- Overall Length
- 23 mm
- Diameter 2
- 13.5 mm
- Free length
- 23 mm
- Max. Cutting Depth
- 8 mm
- Shank Size
- M8
- Diameter 1
- 8.5 mm
Details
- Item
- End / face mill
- Series
- Power Tang
- Cutting Angle
- 90°
- Insert Screw
- 219868 1 (8IP; 1.2 Nm)
- Mounting Thread
- M8
- Tool Exchange
- PowerCard
- Number of Teeth
- 2
- Coolant Through
- Yes
- Milling Application
- Corner milling
- Shank Type
- With Threaded Shank
- Dia/No. of Cutting Edges
- 16 mm/2
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum cutting depth ap max: 8 mm Overall length Ltot: 23 mmD1 h6: 8.5 mmD2: 13.5 mm Mounting thread M: M8 suitable indexable insert: LO.U0904..
