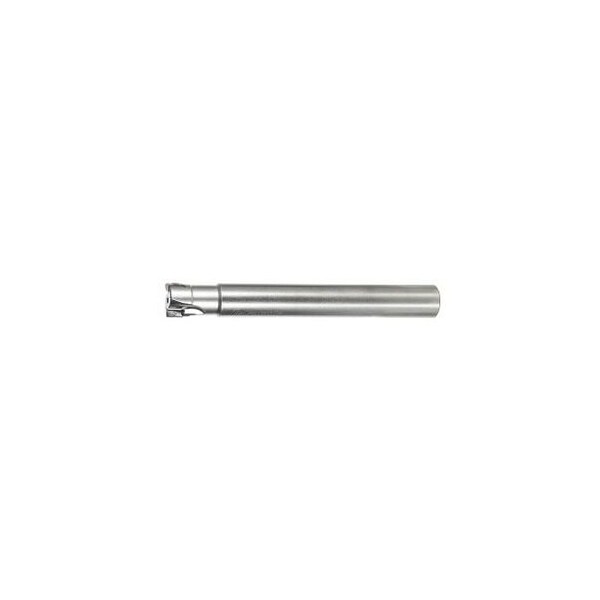

Power Tang Square Tangential Shoulder Mill, Wide Pitch, with Plain Shank, 20mm Diameter, 2 Inserts
Mfr # 215952 20/2
Zoro # G116121016
product price: $396.99
/ea
Free Shipping & Returns
Key Features
Overall Length
160 mm
Shank Dia.
20 mm
Cutting Angle
90°
Cutting Dia.
20 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215952 20/2
Zoro #
G116121016
UPC #
-
Country of Origin
Sweden
Dimensions
Overall Length
160 mm
Shank Dia.
20 mm
Cutting Dia.
20 mm
Max. Cutting Depth
8 mm
Shank Size
20
Details
Item
End / face mill
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Series
Power Tang
Number of Teeth
2
Shank Type
Plain Shank
Coolant Through
Yes
Tool Exchange
PowerCard
Overhang
30 mm
Milling Application
Corner milling
Dia/No. of Cutting Edges
20 mm/2
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 20 mm Number of cutting edges Z: 2 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 160 mm ShankDs h6: 20 mm
