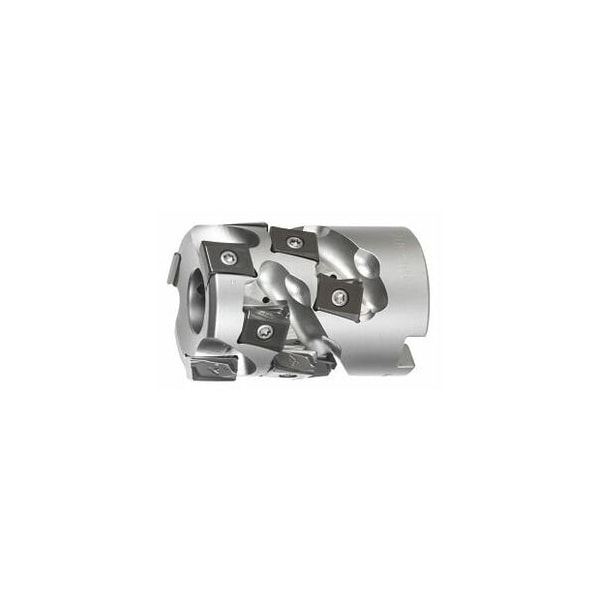

Power Tang Square Tangential Shoulder Mill, with Bore, 50mm Diameter, 3 Effective Inserts
Mfr # 215126 50/3
Zoro # G516121012
product price: $1,332.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
50 mm
Series
Power Tang
Overall Length
70 mm
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215126 50/3
Zoro #
G516121012
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
50 mm
Overall Length
70 mm
Mounting Bore Dia.
27 mm
Max. Cutting Depth
47 mm
Dia./Effective Inserts
50 mm/3
Details
Item
End / face mill
Series
Power Tang
Insert Screw
219882 (15IP; 3.0 Nm)
Cutting Angle
90°
Coolant Through
Yes
Milling Application
Corner milling
Number of Effective Inserts
3
Shank Type
with bore
Number of Indexable Inserts
12
Tool Exchange
PowerCard
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 12 maximum cutting depth ap max: 47 mm Overall length Ltot: 70 mm Mounting bore : 27 mm Pack of insert screws: 219882 15IP- 3.0 Nm
