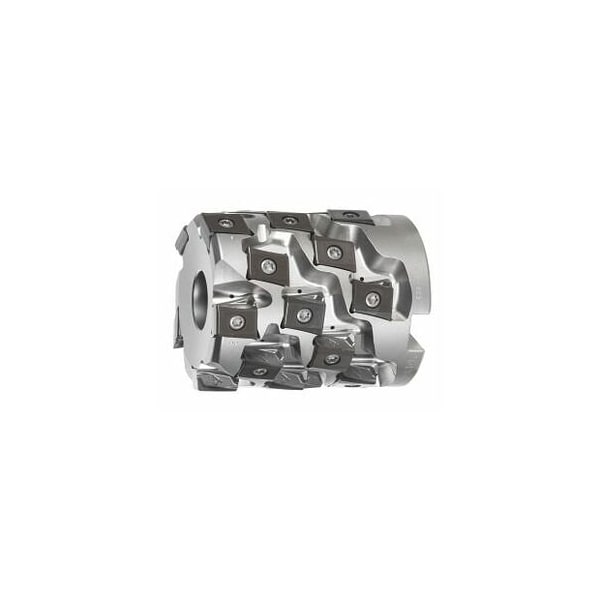

Power Tang Square Tangential Shoulder Mill, with Bore, 63mm Diameter, 5 Effective Inserts
Mfr # 215126 63/5
Zoro # G716120945
product price:Â
$
1,836.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Series
Power Tang
Overall Length
75 mm
Cutting Angle
90°
Insert Screw
219882 (15IP; 3.0 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215126 63/5
- Zoro #
- G716120945
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 75 mm
- Dia./Effective Inserts
- 63 mm/5
- Mounting Bore Dia.
- 27 mm
- Max. Cutting Depth
- 59 mm
Details
- Item
- End / face mill
- Series
- Power Tang
- Cutting Angle
- 90°
- Insert Screw
- 219882 (15IP; 3.0 Nm)
- Number of Indexable Inserts
- 25
- Tool Exchange
- PowerCard
- Shank Type
- with bore
- Coolant Through
- Yes
- Number of Effective Inserts
- 5
- Milling Application
- Corner milling
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 5 Number of indexable inserts: 25 maximum cutting depth ap max: 59 mm Overall length Ltot: 75 mm Mounting bore : 27 mm Pack of insert screws: 219882 15IP- 3.0 Nm
