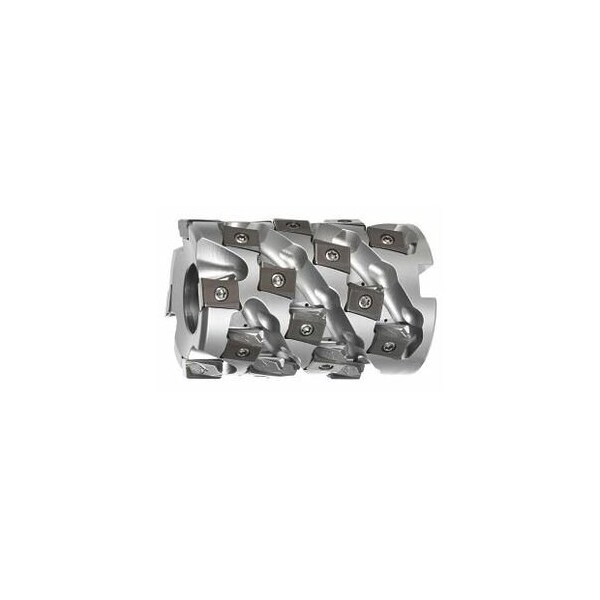

Power Tang Square Tangential Shoulder Mill, with Bore, 63mm Diameter, 4L Effective Inserts
Mfr # 215126 63/4L
Zoro # G116120972
product price: $1,935.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Cutting Angle
90°
Series
Power Tang
Overall Length
93 mm
Insert Screw
219882 (15IP; 3.0 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215126 63/4L
Zoro #
G116120972
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
63 mm
Overall Length
93 mm
Max. Cutting Depth
81 mm
Mounting Bore Dia.
27 mm
Details
Cutting Angle
90°
Item
End / face mill
Series
Power Tang
Insert Screw
219882 (15IP; 3.0 Nm)
Tool Exchange
PowerCard
Coolant Through
Yes
Number of Effective Inserts
4
Number of Indexable Inserts
28
Dia/No. of Cutting Edges
63 mm/4L
Shank Type
with bore
Milling Application
Corner milling
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 4 Number of indexable inserts: 28 maximum cutting depth ap max: 81 mm Overall length Ltot: 93 mm Mounting bore : 27 mm Pack of insert screws: 219882 15IP- 3.0 Nm
