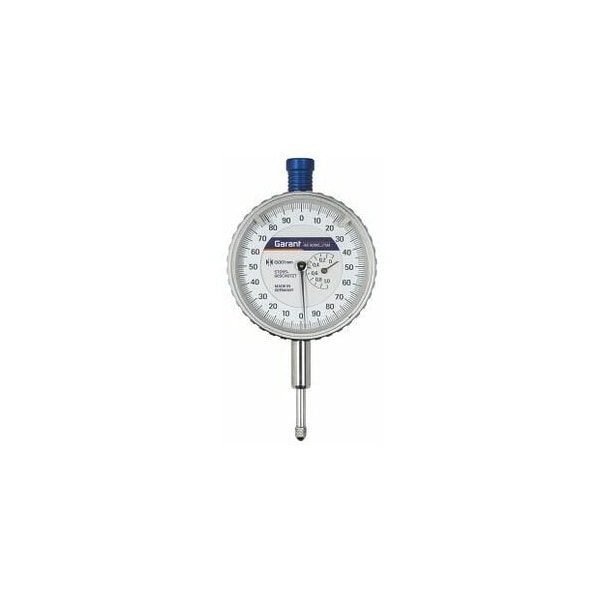

Precision Dial Indicator, Shock-Resistant, Measuring Range / Body Diameter: 1/58 mm
Mfr # 433090 1/58
Zoro # G914556713
product price: $221.99
/ea
Free Shipping & Returns
Key Features
Graduations
0.001 mm
Standards
Manufacturer's standard
Gauging Force
1.5 N
Measuring Range
1 mm
Max. Permissible Error
5 µm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
433090 1/58
Zoro #
G914556713
UPC #
-
Country of Origin
Germany
Dimensions
Body Dia.
58 mm
Details
Graduations
0.001 mm
Item
dial gauge
Standards
Manufacturer's standard
Gauging Force
1.5 N
Measuring Range
1 mm
Max. Permissible Error
5 µm
Measurement Technology
Analogue
Packaging
sturdy box
Reading per Pointer Revolution
0.2 mm
Description
Strong, satin chrome plated brass casing, unbreakable dial glass. Clamping shank Diameter 8 mm h6, hardened and ground. High accuracy version. The most important parts of the mechanism are jewel-mounted. Central pointer for 1/1000 mm reading. Outer ring of dial face can be rotated to zero the dial. Nearly constant measuring force over the entire measuring range. High-quality shock absorption for particularly long working life. Dimensions to DIN EN ISO 463, issue June 2006. Optional extras: Special contact points No. 434900, 434910, 434915.
