Shop GARANT

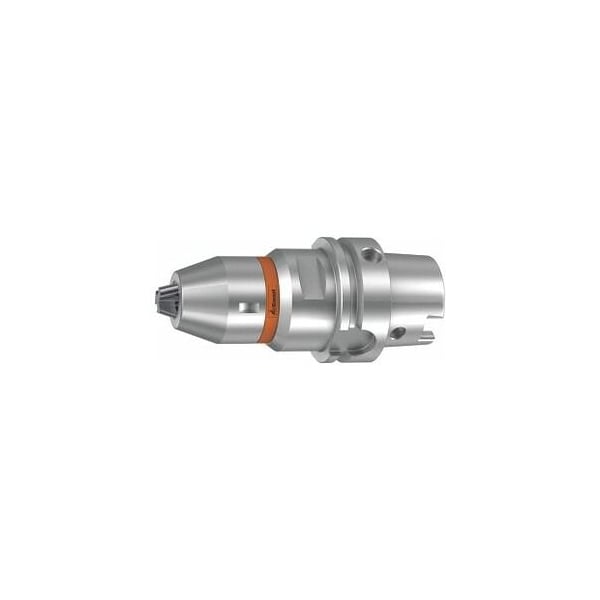

Short Drill Chuck, Form A, HSK-A 63, Clamping Range: 0.5-13mm

  • Mfr # 307725 0,5-13

  • Zoro # G814773418

product price:  $589.99
/ea
Free Shipping & Returns

Key Features

Concentricity
≤ 20 µm
Projection
101 mm
Taper Size
HSK63A
Outside Dia.
43 mm
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
307725 0,5-13
Zoro #
G814773418
UPC #
-
Country of Origin
Spain

Dimensions

Taper Size
HSK63A
Outside Dia.
43 mm
Clamping Dia.
0.5 mm

Details

Item
Short drill chuck
Concentricity
≤ 20 µm
Projection
101 mm
Balance Quality
G 2.5 at 25,000 rpm
Max. Tightening Torque
≤ 14 N·m
Type
slim
Shape
A
Spare Torx Chuck Key No. 625220
TX25
Coolant Through
Yes, With Max. 50 Bar

Description

For clockwise and anticlockwise rotation. With RFID/Balluffchip bore. With through coolant feed up to max. 50 bar. Concentricity 20 um. Slim design. Specific coolant transfer to tools with IC. Optimum holding torques at the tool. Supplied with: Clamping wrench with T-handle. Optional extras: Socket wrench No. 309890. Coolant tube No. 309880. Type: slim Overhang dimension A: 101 mm External Dia D: 43 mm Spare Torx chuck key No. 625220: TX25
