Shop GARANT

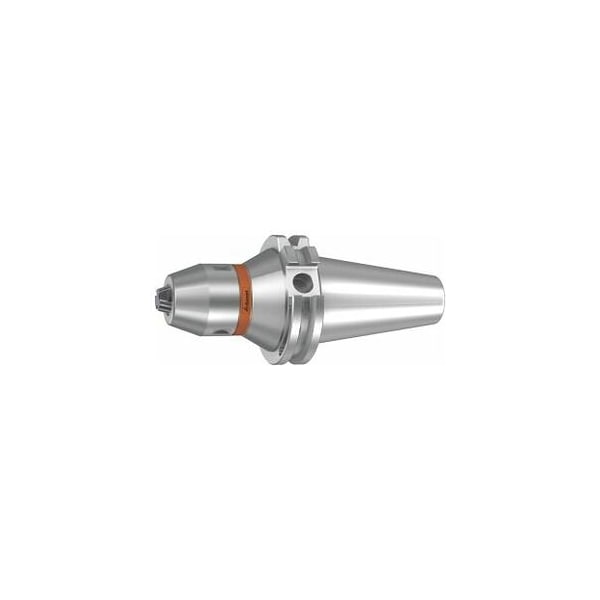

Short Drill Chuck, Form AD, SK 40, Clamping Range: 0.3-8mm

  • Mfr # 301425 0,3-8
  • Zoro # G014775144
product price:
$
436.99
/ea
Free Shipping & Returns

Key Features

Standards
ISO 7388-1
Type
slim
Balance Quality
G 2.5 at 25,000 rpm
Max. Tightening Torque
≤ 14 N·m
Concentricity
≤ 20 µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
301425 0,3-8
Zoro #
G014775144
UPC #
-
Country of Origin
Spain

Dimensions

Outside Dia.
35 mm
Taper Size
SK40
Clamping Dia.
0.3 mm

Details

Item
Short drill chuck
Standards
ISO 7388-1
Type
slim
Balance Quality
G 2.5 at 25,000 rpm
Max. Tightening Torque
≤ 14 N·m
Concentricity
≤ 20 µm
Coolant Through
Yes, With Max. 50 Bar
Spare Torx Chuck Key No. 625220
TX25
Shape
AD
Projection
70 mm

Description

For clockwise and anticlockwise rotation. With Balluff/RFID chip bore. Maximum radial run-out 20 um. Sandblasted and ground. Slim design. Targeted coolant transfer to tools with IC. Optimum holding torques at the tool. Supplied with: Torx chuck key with T-handle for high clamping force. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Type: slim Overhang dimension A: 70 mm External Dia D: 35 mm Spare Torx chuck key No. 625220: TX25
