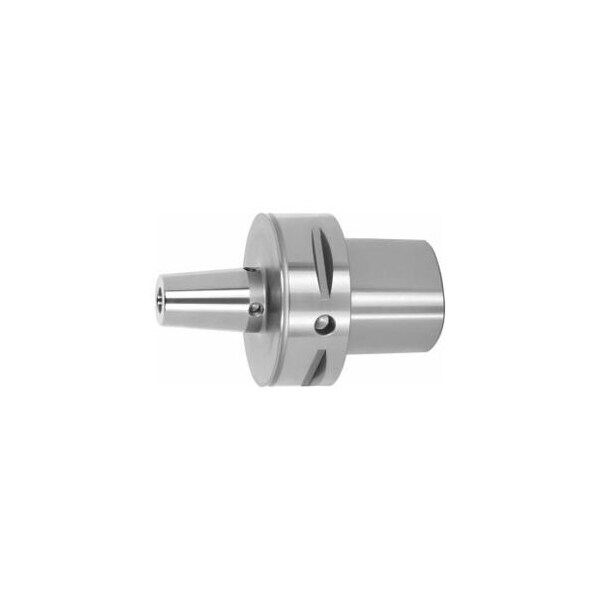

Shrink-fit Holder, PSC 80 Short, Clamping Range: 18mm
Mfr # 308575 18
Zoro # G614775070
product price:Â
$
677.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC80
Projection
85 mm
Coolant Fed
Yes
Standards
ISO 26623-1
Dia.
33 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308575 18
- Zoro #
- G614775070
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC80
- Dia.
- 33 mm
- Clamping Dia.
- 18 mm
- External Dia.
- 42 mm
Details
- Item
- Shrink-fit chuck
- Projection
- 85 mm
- Coolant Fed
- Yes
- Standards
- ISO 26623-1
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with shank tolerance h6. Optional extras: Shrink-fit holder extensions No. 302410 302417. Shrink-fit units No. 354210 354450. Coolant tube No. 309885, socket No. 309893 and balancing screw set No. 309906 size 180. Machining strategy: HPC Clamping Dia D1: 18 mm Overhang dimension A: 85 mm External Dia D: 42 mm Dia D2: 33 mm
