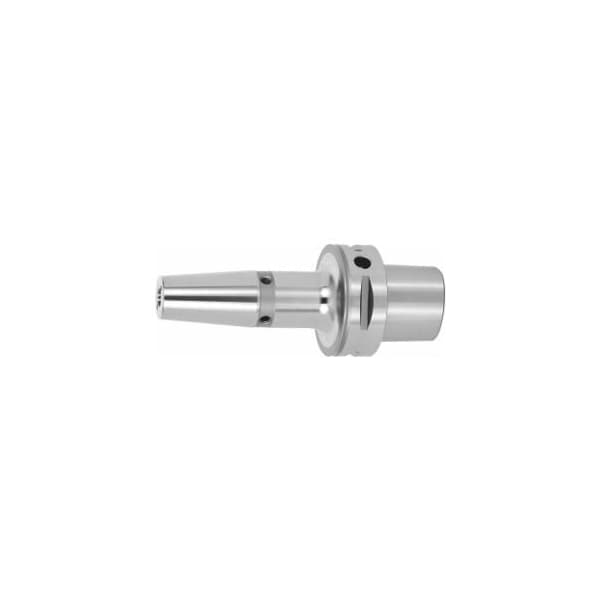

Shrink-fit Holder with Cooling Channel Bore, PSC63, Projection: 120, Clamping Diameter: 6mm
Mfr # 308574 6
Zoro # G614774714
product price: $616.99
/ea
Free Shipping & Returns
Key Features
Concentricity
≤ 3 µm
External Dia.
27 mm
Standards
ISO 26623-1
Coolant Fed
Yes
Projection
120 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
308574 6
Zoro #
G614774714
UPC #
-
Country of Origin
Germany
Dimensions
External Dia.
27 mm
Taper Size
PSC63
Clamping Dia.
6 mm
Dia.
21 mm
Details
Concentricity
≤ 3 µm
Standards
ISO 26623-1
Item
Shrink-fit chuck
Coolant Fed
Yes
Projection
120 mm
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
lockable
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. With coolant channel bores and threads that can be sealed. Application: For clamping tools with shank tolerance h6. Optional extras: Shrink-fit holder extensions No. 302410 302417. Shrink-fit units No. 354210 354450. Coolant tube No. 309885, socket No. 309893 and balancing screw set No. 309906 size 180. Machining strategy: HSC Cooling channel bore: lockable Clamping Dia D1: 6 mm Overhang dimension A: 120 mm External Dia D: 27 mm Dia D2: 21 mm
