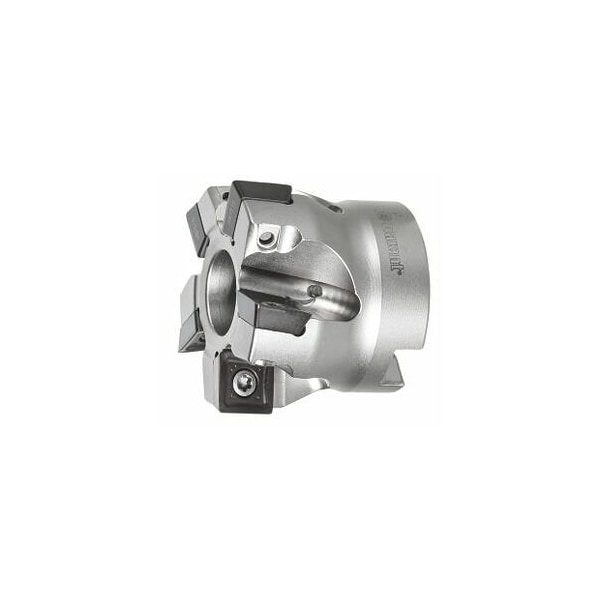

Softcut HSI Milling Cutter, Close Pitch, with Bore, 50mm Diameter, 5 Inserts
Mfr # 214857 50/5
Zoro # G316121137
product price:Â
$
603.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Overall Length
40 mm
Insert Screw
219833 (15IP; 3.0 Nm)
Number of Teeth
5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 214857 50/5
- Zoro #
- G316121137
- UPC #
- -
- Country of Origin
- Italy
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Insert Screw
- 219833 (15IP; 3.0 Nm)
- Number of Teeth
- 5
- Shank Type
- with bore
- Milling Application
- End milling
- Dia/No. of Cutting Edges
- 50 mm/5
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
Description
Version: Individual tool geometry ensures very smooth cutting. Exceptionally sturdy insert design for best feed rates. Indexable inserts are secured by special screws with high shear resistance. Application: For outstanding surface quality. Burr-free milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. For ae > 0.5xD- reduce ap max to 6 mm. For exact 90 deg. corners- select ap = 8 mm. To use all 4 cutters- the insert must always be turned in the direction shown anticlockwise. Tool exchange: PowerCard maximum cutting depth ap max: 10 mm Overall length Ltot: 40 mm Mounting bore : 22 mm suitable indexable insert: SO.. 1205.. Pack of insert screws: 219833 15IP- 3.0 Nm
