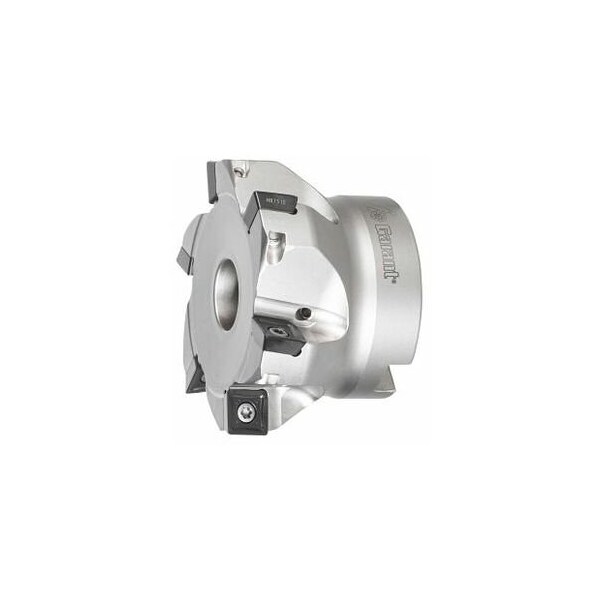

Softcut HSI Milling Cutter, Wide Pitch, with Bore, 80mm Diameter, 6 Inserts
Mfr # 214855 80/6
Zoro # G716121171
product price:Â $754.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Angle
90°
Insert Screw
219833 (15IP; 3.0 Nm)
Number of Teeth
6
Overall Length
50 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
214855 80/6
Zoro #
G716121171
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
50 mm
Cutting Dia.
80 mm
Free length
50 mm
Max. Cutting Depth
10 mm
Mounting Bore Dia.
27 mm
Details
Item
End / face mill
Series
Softcut®
Cutting Angle
90°
Insert Screw
219833 (15IP; 3.0 Nm)
Number of Teeth
6
Dia/No. of Cutting Edges
80 mm/6
Milling Application
End milling
Tool Exchange
PowerCard
Coolant Through
Yes
Shank Type
with bore
Description
Version: Individual tool geometry ensures very smooth cutting. Exceptionally sturdy insert design for best feed rates. Indexable inserts are secured by special screws with high shear resistance. Application: For outstanding surface quality. Burr-free milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. For exact 90 deg. corners- select ap = 8 mm. To use all 4 cutting edges- the insert must always be turned in the direction shown anticlockwise. Tool exchange: PowerCard maximum cutting depth ap max: 10 mm Overall length Ltot: 50 mm Mounting bore : 27 mm suitable indexable insert: SO.. 1205.. Pack of insert screws: 219833 15IP- 3.0 Nm
