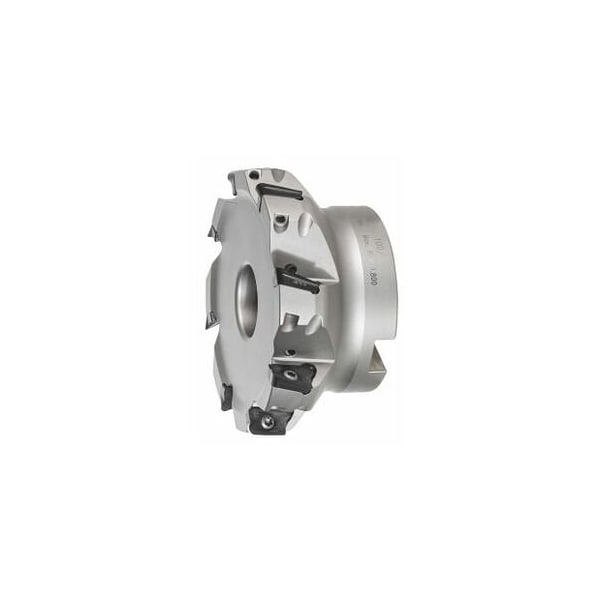

Softcut Shoulder Mill, with Bore, 100mm Diameter, 8 Inserts
Mfr # 215160 100/8
Zoro # G816121118
product price:Â $766.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
100 mm
Series
Softcut®
Overall Length
50 mm
Insert Screw
219808 (15IP; 3.8 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215160 100/8
- Zoro #
- G816121118
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 100 mm
- Overall Length
- 50 mm
- Ramping Length for αmax
- 91.95 mm
- Diameter 3
- 94 mm
- Mounting Bore Dia.
- 32 mm
- Free length
- 50 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Insert Screw
- 219808 (15IP; 3.8 Nm)
- Cutting Angle
- 90°
- Shank Type
- with bore
- Number of Teeth
- 8
- Tool Exchange
- PowerCard
- Axial Rake Angle
- 11°
- Circular interpolation milling ap
- 0.85 mm
- Circular Interpolation Milling - Dmin
- 194 mm
- Ramping Angle
- 0.31°
- Circular Interpolation Milling - Dmax
- 198 mm
- Coolant Through
- Yes
- Fz Helix
- 0.5
- Dia/No. of Cutting Edges
- 100 mm/8
- Machining Strategy
- MTC
Description
Version: High precision square shoulder milling cutter with irregular pitch for very smooth cutting- very high precision and cutting power. High performance indexable square shoulder milling cutter with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For corner milling to large depths- also slotting. General use in all steels including stainless steels. Especially for MTC Multi Task Cutting use on the new generation of turning / milling centres MTM. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. The insert pocket must be modified when using indexable inserts with a radius greater than 3.1 mm. Overall length Ltot: 50 mm Mounting bore : 32 mm Circular interpolation millingDmin: 194 mm Circular interpolation millingDmax: 198 mm Circular interpolation milling ap: 0.85 mm Ramping angle max: 0.31 degrees
