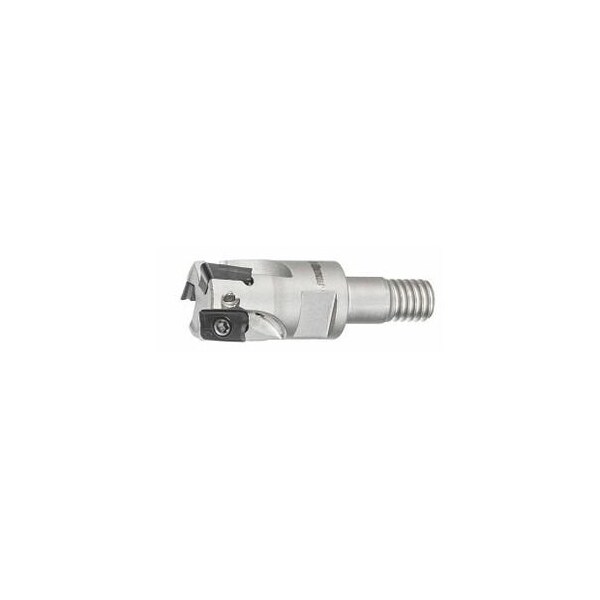

Softcut Square Shoulder Mill, with Threaded Shank, 12mm Diameter, 3 Inserts
Mfr # 215615 12/3
Zoro # G216121169
product price:Â $355.99
/ea
Free Shipping & Returns
Key Features
Series
Softcut®
Cutting Dia.
12 mm
Overall Length
20 mm
Insert Screw
219827 (6IP; 0.45 Nm)
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215615 12/3
- Zoro #
- G216121169
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 12 mm
- Overall Length
- 20 mm
- Diameter 2
- 10.7 mm
- Diameter 1
- 6.5 mm
- Ramping Length for αmax
- 8.85 mm
- Free length
- 20 mm
- Diameter 3
- 10 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Insert Screw
- 219827 (6IP; 0.45 Nm)
- Cutting Angle
- 90°
- Mounting Thread
- M6
- Dia/No. of Cutting Edges
- 12 mm/3
- Circular Interpolation Milling - Dmax
- 22 mm
- Number of Teeth
- 3
- Circular interpolation milling ap
- 0.8 mm
- Ramping Angle
- 1.29°
- Tool Exchange
- PowerCard
- Shank Type
- with threaded shank
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmin
- 22 mm
- Axial Rake Angle
- 11°
- Fz Helix
- 0.5
Description
Version: High precision indexable shoulder mill with irregular pitch for very smooth cutting- very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For shoulder milling to large depths- also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 6IP- 0.45 Nm. Note: GARANT torque screwdriver TQ No. 211750 size 0.45- use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Overall length Ltot: 20 mmD1 h6: 6.5 mmD2: 10.7 mm Mounting thread M: M6 Circular interpolation millingDmin: 22 mm Circular interpolation millingDmax: 22 mm
