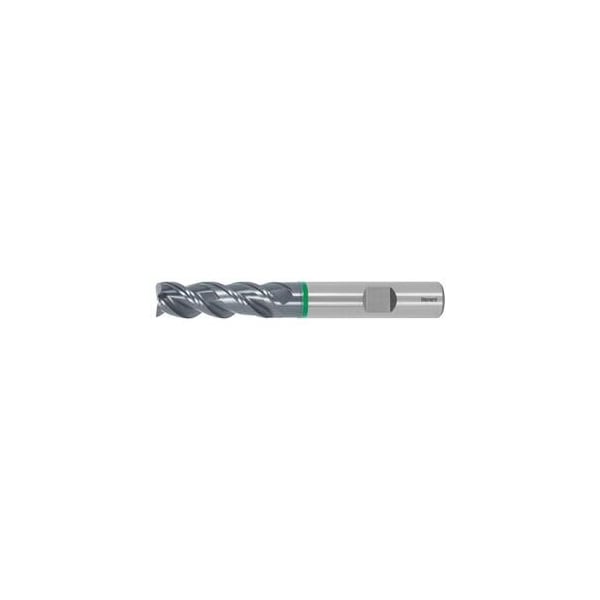

Solid Carbide End Mill, SiTiN, 16 mm
Mfr # 202399 16
Zoro # G614382025
product price:Â $383.99
/ea
Free Shipping & Returns
Key Features
Overall Length
108 mm
Milling Diameter
16 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202399 16
- Zoro #
- G614382025
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 108 mm
- Milling Diameter
- 16 mm
- Length of Cut
- 48 mm
- Neck Dia.
- 15.5 mm
- Shank Dia.
- 16 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 48 mm
- Corner Chamfer Width at 45°
- 0.2 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 16 mm
- Min. Cutting Depth
- 0.3 mm
- Tolerance Nominal Diameter
- f8
Description
Special flute profile. Strengthened core. MTC rough milling up to 1.5xD in solid material. Eccentric relief ground. Improved coating for a further reduction in cutting force combined with increased tool life. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 48 mm Overhang length L1 incl. recess: 58 mm Recess Dia. D1: 15.5 mm Overall length L: 108 mm Shank Dia. Ds: 16 mm
