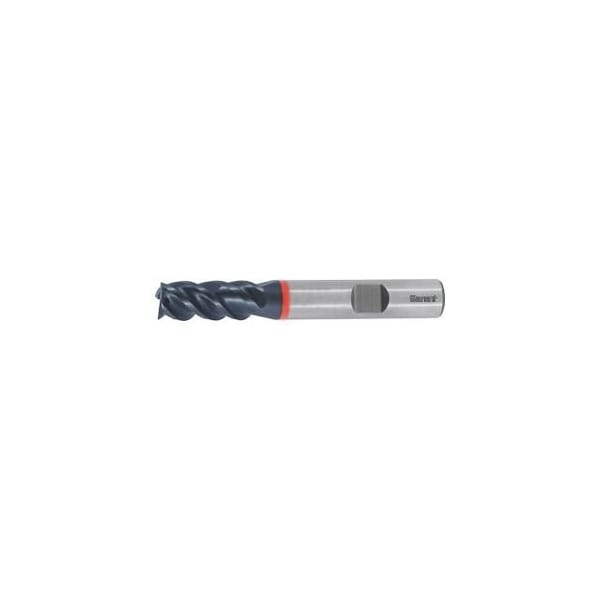

Solid Carbide TPC End Mill, for Hard Steels, TiAlN Coated, 4 mm
Mfr # 202977 4
Zoro # G514385447
product price:Â
$
65.65
/ea
Key Features
Overall Length
57 mm
Milling Diameter
4 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202977 4
- Zoro #
- G514385447
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 57 mm
- Milling Diameter
- 4 mm
- Length of Cut
- 11 mm
- Min. Cutting Depth
- 0.05 mm
- Corner Chamfer Width at 45°
- 0.05 mm
- Shank Dia.
- 6 mm
- Neck Dia.
- 3.8 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 4 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 11 mm
- Tolerance Nominal Diameter
- f8
Description
Significant cutting force reduction due to 45 Deg helix. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling centers. Note: For materials > 55 HRC we recommend reducing the depth of cut to ap =0.25xD...0.5xD. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 11 mm Overhang length L1 incl. recess: 18 mm Recess Dia. D1: 3.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
