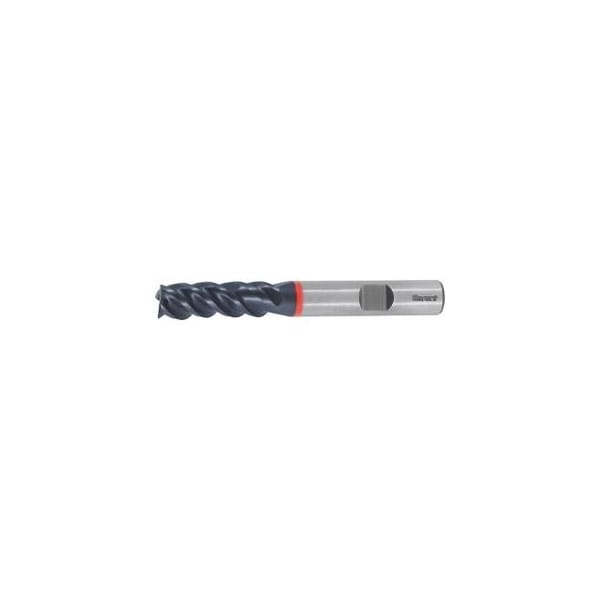

Solid Carbide TPC End Mill, for Hard Steels, TiAlN Coated, 4 mm

  • Mfr # 202978 4

  • Zoro # G314385210


product price:
$
80.85
/ea

Key Features

Milling Diameter
4 mm
Overall Length
62 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202978 4
Zoro #
G314385210
UPC #
-
Country of Origin
Germany
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
End Mill Material
Carbide
Shank Type
DIN 6535 HA to h6
Overall Reach
23 mm
Cutting Direction
horizontal, oblique and vertical
Type
H
Coolant Through
No
Helix Angle
45 Degrees
Maximum Cut Arc Angle
36.87 Degrees
Feed Fz For Slot Milling in Steel < 60 HRC
0.008 mm
Shank Tolerance
h6
Type of Product
End Mill
Correction Factor Fz
2
Color Ring
red
Feed Fz For Side Milling in Steel < 60 HRC
0.01 mm
Corner Chamfer Angle
45 Degrees

Description

Significant cutting force reduction due to 45 Deg helix. Specially for trochoidal milling strategy. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling centers. Note: For materials > 55 HRC we recommend reducing the depth of cut to ap=0.25xD...0.5xD. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 23 mm Recess Dia. D1: 3.8 mm Overall length L: 62 mm Shank Dia. Ds: 6 mm
