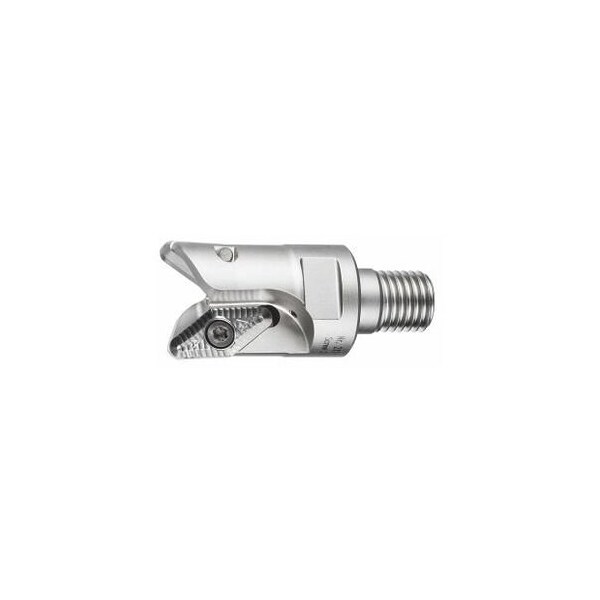

Square Plunge Milling Cutter, with Threaded Shank, for VCG. Inserts, 32mm Diameter, 2 Inserts
- Mfr # 211813 32/2
- Zoro # G516121357
product price:Â
$
391.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
93°
Cutting Dia.
32 mm
Insert Screw
219800 (20IP; 5.7 Nm)
Overall Length
47 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211813 32/2
- Zoro #
- G516121357
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 47 mm
- Diameter 3
- 26 mm
- Diameter 2
- 29 mm
- Diameter 1
- 17 mm
- Ramping Length for αmax
- 22.34 mm
Details
- Item
- Plunge mill
- Cutting Angle
- 93°
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Number of Teeth
- 2
- Ramping Angle
- 7.65°
- Circular interpolation milling ap
- 4 mm
- Overhang
- 47 mm
- Machining Strategy
- MTC
- Dia/No. of Cutting Edges
- 32 mm/2
- Axial Rake Angle
- 0°
- Fz Helix
- 0.8
- Shank Type
- with threaded shank
- Mounting Thread
- M16
- Circular Interpolation Milling - Dmax
- 62 mm
- Circular Interpolation Milling - Dmin
- 58 mm
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Can be extended as required using the threaded connection. Application: To prevent chips jamming- especially when milling deep pockets. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCardD3: 26 mmD1 h6: 17 mmD2: 29 mm Overall length Ltot: 47 mm Mounting thread M: M16 Circular interpolation millingDmin: 58 mm
