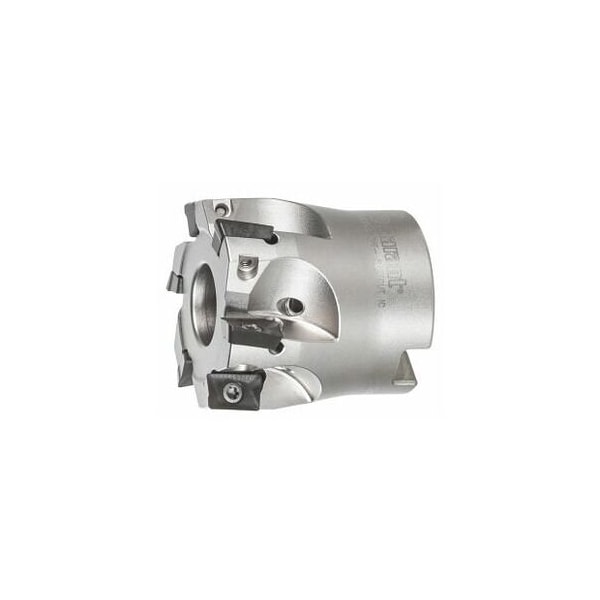

Square Shoulder Mill, with Bore, 40mm Diameter, 6 Inserts
Mfr # 215850 40/6
Zoro # G616121356
product price: $360.99
/ea
Free Shipping & Returns
Key Features
Overall Length
40 mm
Cutting Dia.
40 mm
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Mounting Bore Dia.
16 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215850 40/6
Zoro #
G616121356
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
40 mm
Cutting Dia.
40 mm
Mounting Bore Dia.
16 mm
Diameter 3
37 mm
Free length
40 mm
Ramping Length for αmax
34.85 mm
Details
Item
End / face mill
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Number of Teeth
6
Fz Helix
0.5
Axial Rake Angle
3°
Dia/No. of Cutting Edges
40 mm/6
Coolant Through
Yes
Tool Exchange
PowerCard
Circular Interpolation Milling - Dmax
78 mm
Circular Interpolation Milling - Dmin
77 mm
Ramping Angle
0.41°
Shank Type
with bore
Description
Version: With bore for screw fixing. Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 77 mm Circular interpolation millingDmax: 78 mm Ramping angle max: 0.41 degrees Ramping length L for max: 34.85 mm
