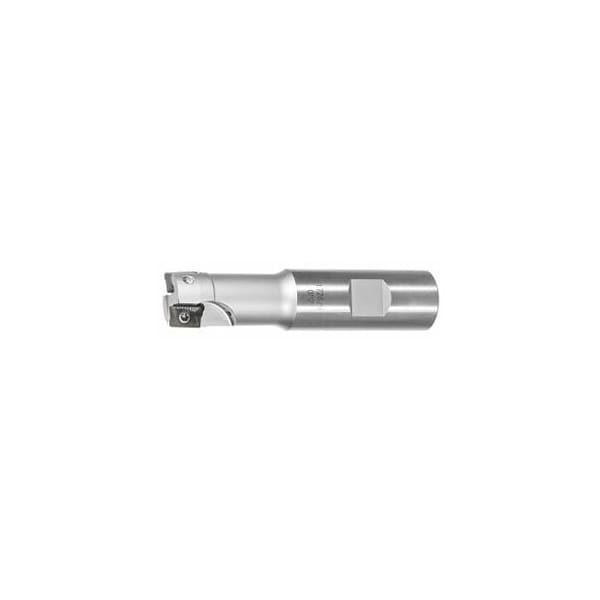

Square Shoulder Mill, with Weldon Flat, 18mm Diameter, 2 Inserts
Mfr # 215800 18/2
Zoro # G316121397
product price: $235.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219814 (8IP; 1.2 Nm)
Cutting Dia.
18 mm
Shank Dia.
20 mm
Cutting Angle
90°
Overall Length
90 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215800 18/2
Zoro #
G316121397
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
18 mm
Shank Dia.
20 mm
Overall Length
90 mm
Ramping Length for αmax
12.85 mm
Diameter 3
15 mm
Details
Insert Screw
219814 (8IP; 1.2 Nm)
Item
End / face mill
Cutting Angle
90°
Dia/No. of Cutting Edges
18 mm/2
Tool Exchange
PowerCard
Shank Type
Weldon shank
Axial Rake Angle
3°
Coolant Through
Yes
Number of Teeth
2
Circular Interpolation Milling - Dmax
34 mm
Circular Interpolation Milling - Dmin
33 mm
Fz Helix
0.5
Overhang
40 mm
Ramping Angle
1.11°
Description
Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Cutting edgeDC: 18 mm Number of cutting edges Z: 2 Overhang L1: 40 mm Overall length Ltot: 90 mm ShankDs h6: 20 mm Circular interpolation millingDmin: 33 mm
