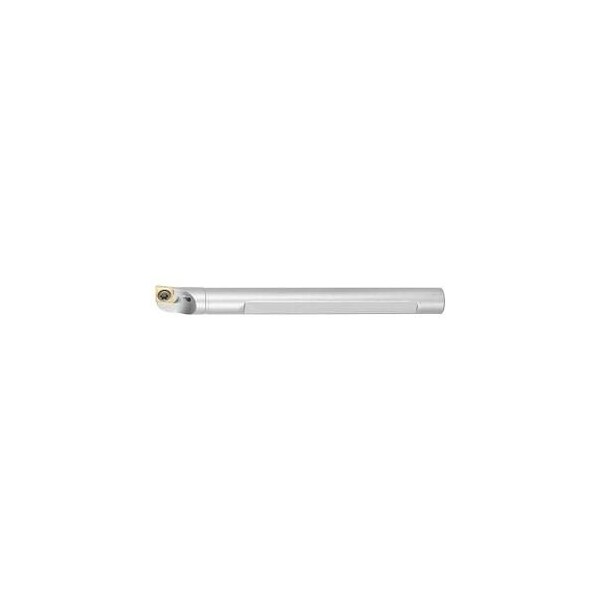

Steel Boring Bar, A06X SCLDLS4, for CDCT1.2 Inserts, Left-Hand
Mfr # 268718 6/S4
Zoro # G414820598
product price: $154.99
/ea
Free Shipping & Returns
Key Features
Size
6/S4
Min. Pre-Drill Diameter Dmin
6.92 mm
Max. Bore Dia.
3 x D
Application
Internal longitudinal turning
Shank Dia.
6 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268718 6/S4
Zoro #
G414820598
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
6/S4
Min. Pre-Drill Diameter Dmin
6.92 mm
Max. Bore Dia.
3 x D
Shank Dia.
6 mm
Clamping Height
5.54 mm
Insert Size
4 mm
Free Length
20 mm
Overall Length
65 mm
Details
Application
Internal longitudinal turning
Shank Type
Boring bar
Item
Boring bar
Cutting Direction
Left-Hand
ISO Number
A06X SCLDR/LS4
Insert Shape
80 Degrees Diamond
Center Offset
3.73 mm
Coolant Through
Yes
Setting Angle
95 Angle
Overhang
18 mm
Description
Boring bar, steel 6/S4 mmStandard: Works standard Shank Diameters: 6 mm ISO code toolholder: A06X SCLDR/LS4 Setting angle k: 95 degrees suitable indexable insert: CDCT S4010. Minimum pre-drill Diametermin: 6.92 mm Center offset L3: 3.73 mm
