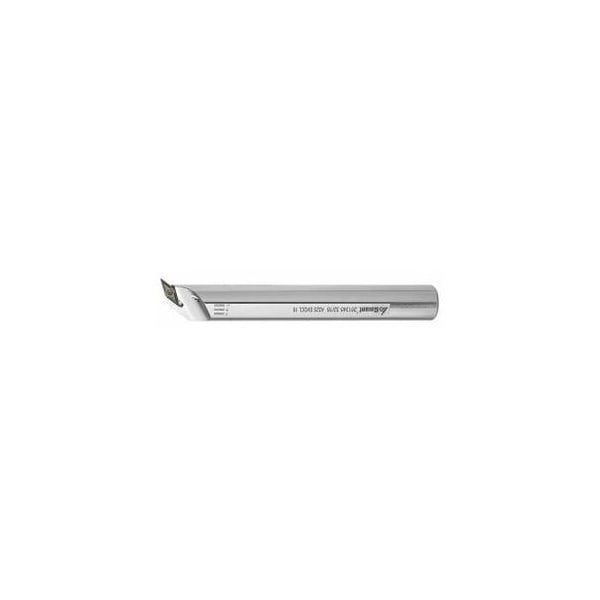

Steel Boring Bar, A32S SVQCL16, for VC 3 Inserts, Left-Hand
Mfr # 261345 32/16
Zoro # G714820625
product price:Â
$
327.99
/ea
Free Shipping & Returns
Key Features
Overall Length
250 mm
Insert Shape
35 Degrees Diamond
Size
32/16
Min. Pre-Drill Diameter Dmin
40 mm
Application
Internal longitudinal turning
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261345 32/16
- Zoro #
- G714820625
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 250 mm
- Size
- 32/16
- Min. Pre-Drill Diameter Dmin
- 40 mm
- Head Length
- 33.5 mm
- Clamping Height
- 31 mm
- Insert Size
- 16 mm
- Free Length
- 130 mm
- Max. Bore Dia.
- 3 x D
- Shank Dia.
- 32 mm
Details
- Item
- Boring Bar
- Insert Shape
- 35 Degrees Diamond
- Application
- Internal longitudinal turning
- Standards
- DIN 8024
- Shank Type
- Boring bar
- Center Offset
- 22 mm
- Coolant Through
- Yes
- Cutting Direction
- Left-Hand
- Shim
- 269005 8
- ISO Number
- A32S SVQCR/L16
- Shim screw
- 269013 2
- Insert Assignment
- right-hand and neutral
- Setting Angle
- 107.5 Angle
Description
Boring bar steel 32/16 mmStandard: DIN 8024 Shank Diameters: 32 mm ISO code toolholder: A32S SVQCR/L16 Setting angle k: 107.5 degrees suitable indexable insert: VC 1604 Minimum pre-drill Diametermin: 40 mm Center offset L3: 22 mm
