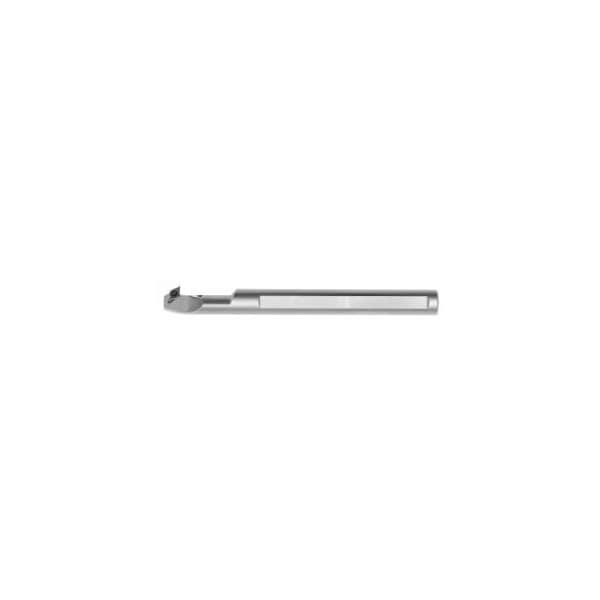

Steel Boring Bar, A08F SDXCL04, for DC 1.2 Inserts, Left-Hand
Mfr # 260345 8/04
Zoro # G614821425
product price: $139.99
/ea
Free Shipping & Returns
Key Features
Size
8/04
Insert Shape
55 Degrees Diamond
Overall Length
80 mm
Coolant Through
Yes
Max. Bore Dia.
3 x D
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260345 8/04
Zoro #
G614821425
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Size
8/04
Overall Length
80 mm
Max. Bore Dia.
3 x D
Head Length
15 mm
Min. Pre-Drill Diameter Dmin
9.2 mm
Insert Size
4 mm
Clamping Height
7.5 mm
Free Length
15 mm
Usable Depth
3 mm
Shank Dia.
8 mm
Details
Insert Shape
55 Degrees Diamond
Coolant Through
Yes
Standards
DIN 8024
Setting Angle
93 Angle
Shank Type
Boring bar
Item
Boring bar
Application
Internal longitudinal turning
Cutting Direction
Left-Hand
ISO Number
A08F SDXCR/L04
Center Offset
5 mm
Description
Boring bar, steel 8/04 mmStandard: DIN 8024 Shank Diameters: 8 mm ISO code toolholder: A08F SDXCR/L04 Setting angle k: 93 degrees suitable indexable insert: DC 04T0 Minimum pre-drill Diametermin: 9.2 mm Center offset L3: 5 mm
