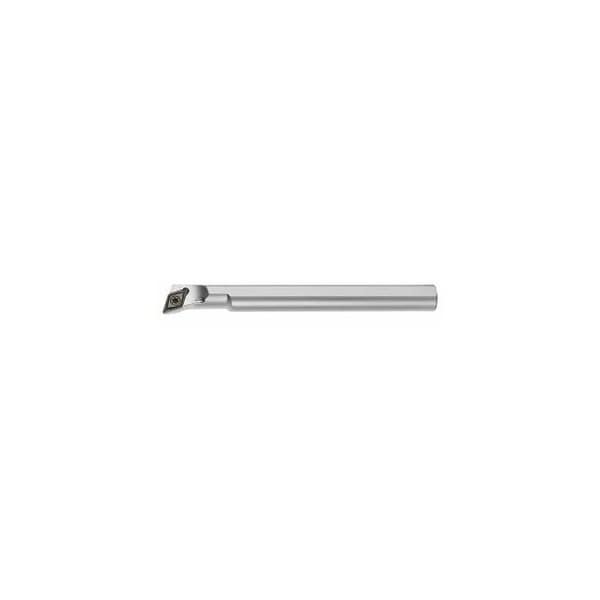

Steel Boring Bar, A1012K SDQCR07, for DC 2 Inserts, Right-Hand
Mfr # 260340 1012/07
Zoro # G314820636
product price:Â
$
142.99
/ea
Free Shipping & Returns
Key Features
Overall Length
125 mm
Insert Shape
55 Degrees Diamond
Size
1012/07
Cutting Direction
Right-Hand
Center Offset
9 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260340 1012/07
- Zoro #
- G314820636
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 125 mm
- Size
- 1012/07
- Shank Dia.
- 12 mm
- Max. Bore Dia.
- 3 x D
- Usable Depth
- 4 mm
- Insert Size
- 7 mm
- Min. Pre-Drill Diameter Dmin
- 15.5 mm
- Clamping Height
- 11 mm
- Neck Width
- 10.7 mm
- Head Length
- 27.5 mm
Details
- Item
- Boring Bar
- Insert Shape
- 55 Degrees Diamond
- Cutting Direction
- Right-Hand
- Center Offset
- 9 mm
- Setting Angle
- 107.5 Angle
- Coolant Through
- Yes
- Application
- Internal longitudinal turning
- Shank Type
- Boring bar
- ISO Number
- A1012K SDQCR/L07
Description
Boring bar, steel 1012/07 mmStandard: Works standard Shank Diameters: 12 mm ISO code toolholder: A1012K SDQCR/L07 Setting angle k: 107.5 degrees suitable indexable insert: DC 0702 Minimum pre-drill Diametermin: 15.5 mm Center offset L3: 9 mm
