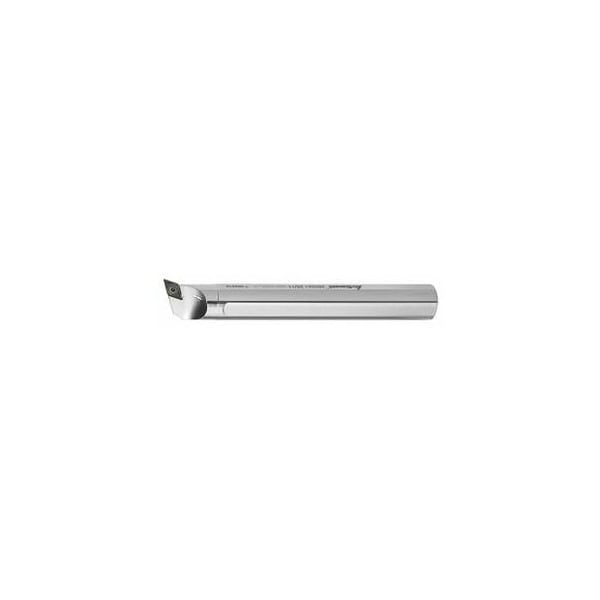

Steel Boring Bar, A10K SDQCL07, for DC 2 Inserts, Left-Hand
- Mfr # 260341 10/07
- Zoro # G514820559
product price:Â
$
136.99
/ea
Free Shipping & Returns
Key Features
Overall Length
125 mm
Insert Shape
55 Degrees Diamond
Max. Bore Dia.
3 x D
Overhang
30 mm
Cutting Width
11.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260341 10/07
- Zoro #
- G514820559
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 125 mm
- Max. Bore Dia.
- 3 x D
- Cutting Width
- 11.5 mm
- Free Length
- 35 mm
- Clamping Height
- 9 mm
- Insert Size
- 7 mm
- Size
- 10/07
- Min. Pre-Drill Diameter Dmin
- 14 mm
- Shank Dia.
- 10 mm
Details
- Item
- Boring bar
- Insert Shape
- 55 Degrees Diamond
- Overhang
- 30 mm
- Application
- Internal longitudinal turning
- Standards
- DIN 8024
- Center Offset
- 7 mm
- Setting Angle
- 107.5 Angle
- Cutting Direction
- Left-Hand
- Shank Type
- Boring bar
- ISO Number
- A10K SDQCR/L07
- Coolant Through
- Yes
Description
Boring bar, steel 10/07 mmStandard: DIN 8024 Shank Diameters: 10 mm ISO code toolholder: A10K SDQCR/L07 Setting angle k: 107.5 degrees suitable indexable insert: DC 0702 Minimum pre-drill Diametermin: 14 mm Center offset L3: 7 mm
