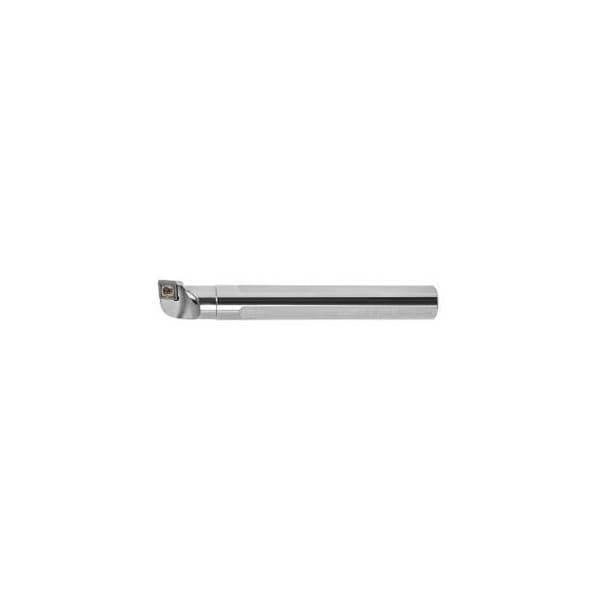

Steel Boring Bar, A20R SCLCL09, for CC 3 Inserts, Left-Hand
Mfr # 260033 20/09
Zoro # G314821374
product price:Â
$
155.99
/ea
Free Shipping & Returns
Key Features
Overall Length
200 mm
Insert Shape
80 Degrees Diamond
Center Offset
13 mm
Shank Dia.
20 mm
Shank Type
Boring bar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260033 20/09
- Zoro #
- G314821374
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Overall Length
- 200 mm
- Shank Dia.
- 20 mm
- Clamping Height
- 18 mm
- Insert Size
- 9 mm
- Free Length
- 80 mm
- Min. Pre-Drill Diameter Dmin
- 25 mm
- Max. Bore Dia.
- 3 x D
- Size
- 20/09
Details
- Item
- Boring bar
- Insert Shape
- 80 Degrees Diamond
- Center Offset
- 13 mm
- Shank Type
- Boring bar
- Insert Assignment
- right-hand and neutral
- ISO Number
- A20R SCLCR/L09
- Setting Angle
- 95 Angle
- Standards
- DIN 8024
- Coolant Through
- Yes
- Application
- Internal longitudinal turning
- Cutting Direction
- Left-Hand
Description
Boring bar steel 20/09 mmStandard: DIN 8024 Shank Diameters: 20 mm ISO code toolholder: A20R SCLCR/L09 Setting angle k: 95 degrees suitable indexable insert: CC 09T3 Minimum pre-drill Diametermin: 25 mm Center offset L3: 13 mm
