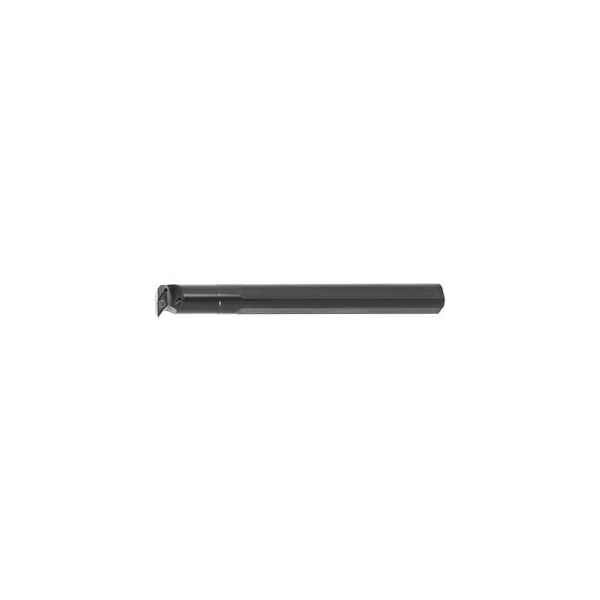

Steel Boring Bar, A20R SVUBR11, for VB 2 Inserts, Right-Hand
Mfr # 261132 20/11
Zoro # G514820375
product price: $232.99
/ea
Free Shipping & Returns
Key Features
Size
20/11
Min. Pre-Drill Diameter Dmin
25 mm
Center Offset
13 mm
Head Length
20.5 mm
Cutting Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261132 20/11
Zoro #
G514820375
UPC #
-
Country of Origin
Austria
Dimensions
Size
20/11
Min. Pre-Drill Diameter Dmin
25 mm
Head Length
20.5 mm
Max. Bore Dia.
3 x D
Overall Length
200 mm
Cutting Width
11 mm
Insert Size
11 mm
Free Length
100 mm
Shank Dia.
20 mm
Clamping Height
18 mm
Details
Center Offset
13 mm
Cutting Direction
Right-Hand
ISO Number
A20R SVUBR/L11
Setting Angle
93 Angle
Coolant Through
Yes
Shank Type
Boring bar
Standards
DIN 8024
Insert Shape
35 Degrees Diamond
Item
Boring bar
Application
Internal longitudinal turning
Description
Boring bar, steel 20/11 mmStandard: DIN 8024 Shank Diameters: 20 mm ISO code toolholder: A20R SVUBR/L11 Setting angle k: 93 degrees suitable indexable insert: VB 1103 Minimum pre-drill Diametermin: 25 mm Center offset L3: 13 mm
