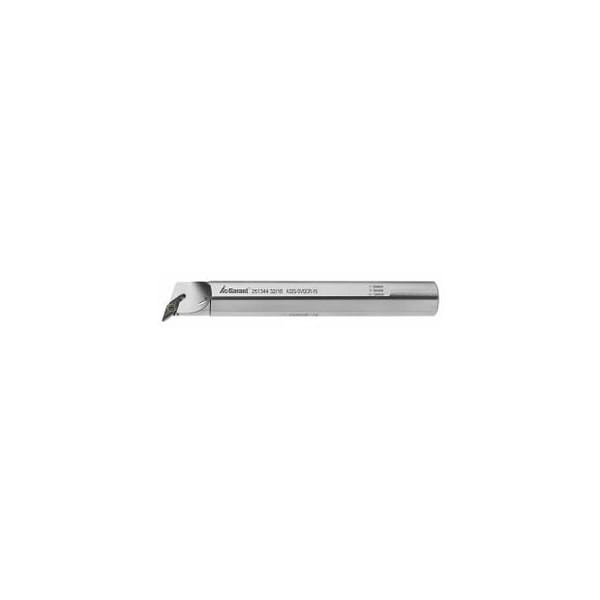

Steel Boring Bar, A40T SVQCR16, for VC 3 Inserts, Right-Hand
Mfr # 261344 40/16
Zoro # G214820736
product price: $459.99
/ea
Free Shipping & Returns
Key Features
Size
40/16
Insert Assignment
left-hand and neutral
Insert Size
16 mm
Min. Pre-Drill Diameter Dmin
49 mm
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261344 40/16
Zoro #
G214820736
UPC #
-
Country of Origin
Austria
Dimensions
Size
40/16
Insert Size
16 mm
Min. Pre-Drill Diameter Dmin
49 mm
Overall Length
300 mm
Shank Dia.
40 mm
Head Length
40 mm
Free Length
160 mm
Clamping Height
39 mm
Max. Bore Dia.
3 x D
Details
Insert Assignment
left-hand and neutral
Coolant Through
Yes
Shim screw
269013 2
Center Offset
27 mm
Item
Boring bar
Insert Shape
35 Degrees Diamond
Cutting Direction
Right-Hand
Application
Internal longitudinal turning
Shim
269005 8
ISO Number
A40T SVQCR/L16
Standards
DIN 8024
Setting Angle
107.5 Angle
Shank Type
Boring bar
Description
Boring bar steel 40/16 mmStandard: DIN 8024 Shank Diameters: 40 mm ISO code toolholder: A40T SVQCR/L16 Setting angle k: 107.5 degrees suitable indexable insert: VC 1604 Minimum pre-drill Diametermin: 49 mm Center offset L3: 27 mm
