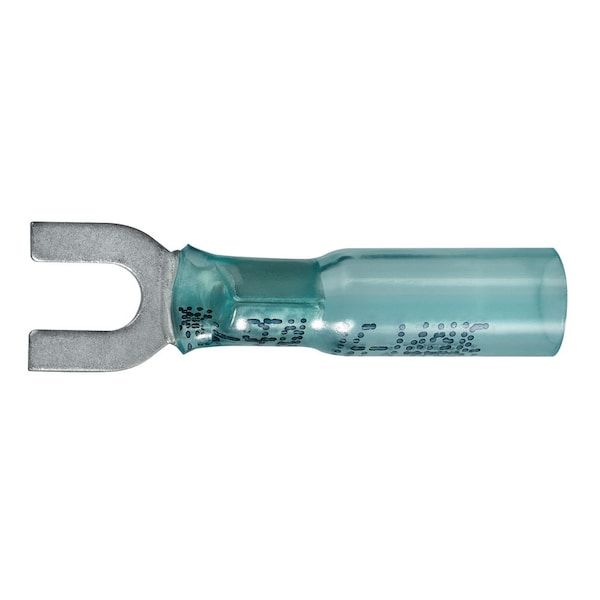

Fork Terminal, 8 mm Stud Size, 14 AWG, 600 V
Mfr # AMT-113
Zoro # G501245785
product price:
$
8.15
/ea
Key Features
Maximum Wire Size
14 AWG
Stud Size
#8 to #10
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Insulation Color
Blue
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AMT-113
- Zoro #
- G501245785
- UPC #
- 32076052751
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 14 AWG
- Stud Size
- #8 to #10
- Minimum Wire Size
- 16 AWG
Details
- Item
- Fork Terminal
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Insulation Color
- Blue
- Insulation Type
- Heat Shrink
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- -67 Degrees F
- Termination Style
- Crimp Termination Only
- Terminal Shape
- Fork
Description
GB Xtreme Heat Shrink Terminals offer triple protection against strain and vibration. They crimp easily without splitting to secure the connection in place. Soldering improves conductivity and provides a tough, corrosion-proof connection. Heat shrinking forms a final watertight seal and the ultimate vibration and strain relief. Strong connections reduce wire pull out and keep you powered even when faced with heavy vibration. To put it simply, our products work and play as hard as you do. If you are the kind of person that never gives up, you can rely on GB Xtreme products to keep the equipment you rely on running at full speed no matter what.
- • Insulates and protects connections from wire pullout, moisture intrusion and abrasion
- • Heat-activated adhesive melts and flows to create a waterproof seal
- • Resists salt water, oil, gasoline and other environmental contaminants
- • Rated at 600 volt max
- •
