  11. 6/Skid Rotary Vane Pump - Sep Drive

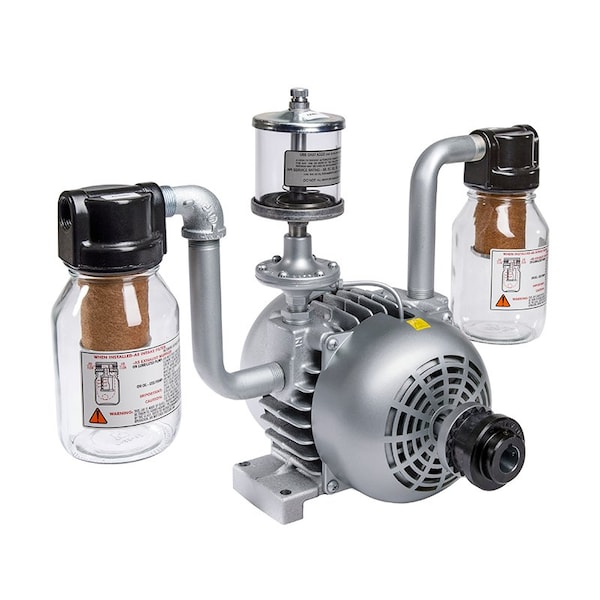

Gast 6/Skid Rotary Vane Pump - Sep Drive 2565-V2A - main

6/Skid Rotary Vane Pump - Sep Drive

  • Mfr # 2565-V2A

  • Zoro # G0485530

product price: $1,559.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Size
3/4 in
Standards
CE
Overall Width
12.57 in
Overall Length
20.11 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2565-V2A
Zoro #
G0485530
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/4 in
Outlet Size
3/4 in
Overall Width
12.57 in
Overall Length
20.11 in
Overall Height
14.25 in

Details

Item
Vacuum Pump
Standards
CE
Includes
Cooling Fan, Coupling Assembly, Fan, Fan Guards, Filter, Muffler, Oil Reservoir, Oiler, Pressure Gauge, Pressure/Vacuum Lubricator
Maximum Vacuum
21 in Hg
Maximum Continuous Pressure
15 psi
Maximum Pressure
15 psi
Maximum Speed @ 50 Hz
1,425 RPM
Maximum Operating Temperature
104 Degrees F
Sound Level
77 dBA
Minimum Operating Temperature
33.8 Degrees F
Weight
38 lb
Wattage
1.1 kW
Output Power
1.5 hp
Maximum Speed
1,725 RPM
Free Air Flow Rate
16.5 cfm, 21 cfm
Frequency
50 Hz, 60 Hz
Outlet Type
NPT
Inlet Type
NPT
Series
Gast
Power Source
Separate Drive
Thermal Protection
No
Pump Type
Rotary Vane
Outlet Gender
Female
Duty Cycle
Continuous
Environment
Laboratory, Medical
Inlet Gender
Female
Housing Material
Grey Iron
Maximum Intermittent Pressure
15 psi
Filter Element Material
Polypropylene
Life Expectancy
4,000 hr
Compressor/Pump Enclosure Material
Grey Iron
Bearing Type
Shielded Ball
Lubrication Type
SAE#10
Maximum Pressure @ 50 Hz
15 psi
Pump Oil Capacity
6 fl oz

Description

Vacuum Pump, Output Power 1.5 hp, Phase Not Applicable, Voltage Not Applicable, Inlet Size 3/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/4 in, Outlet Type NPT, Outlet Gender Female, Free Air Flow Rate 16.5 cfm, 21 cfm, Maximum Vacuum 21 in Hg, Maximum Continuous Pressure 15 psi, Maximum Speed 1,725 RPM
