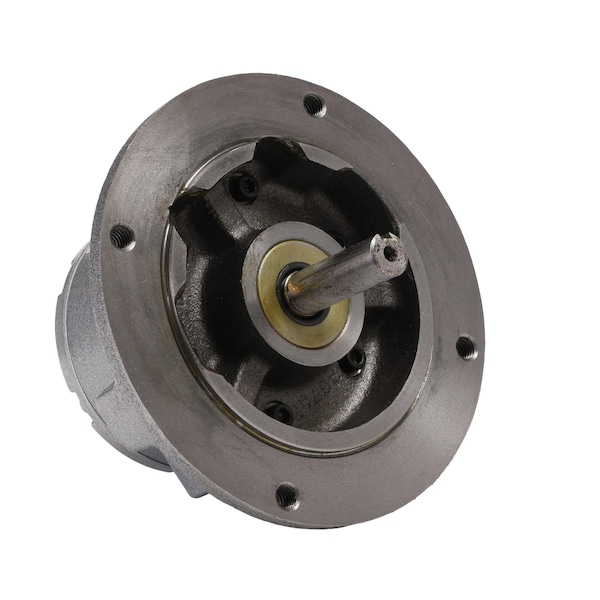

Air Motor, 1.7 hp, 78 cfm, 1/4 inNPT
- Mfr # 4AM-NRV-70C
- Zoro # G0602500
product price:Â
$
562.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW/CCW
Overall Length
6 3/4 in
Shaft Length
2 in
Includes
Muffler
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 4AM-NRV-70C
- Zoro #
- G0602500
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 6 3/4 in
- Shaft Length
- 2 in
- Length Less Shaft
- 4 63/100 in
- Overall Height
- 6 1/2 in
- Outside Diameter
- 6 1/2 in
- Overall Width
- 6 1/2 in
- Keyway Depth
- 1/8 in
- Manufacturers Warranty Length
- 1 yr
- Keyway Width
- 1/8 in
- Keyway Length
- 1 3/8 in
- Inlet Size
- 1/4 in
- Shaft Diameter
- 5/8 in
- Mount Hole Center-to-Center Length
- 5 7/8 in
- Mount Hole Center-to-Center Width
- 5 7/8 in
- Wire Rope Length
- 6 3/4 in
- Length
- 6 3/4 in
Description
Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 30-36, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 11 lb, Housing Material Grade G2500, Housing Material Finish Painted, Keyway Type Square
