Contact our U.S. based teamSpecifications
Product Information
MFR #
MOA-P22-AA
Zoro #
G1099847
UPC #
-
Country of Origin
United States
Dimensions
Inlet Size
1/4" NPT
Outlet Size
1/4" NPT
Overall Length
7-3/16"
Overall Width
4-5/16"
Overall Height
4-3/4"
Details
Item
Compressor/Vacuum Pump
Compressor Type
Diaphragm
HP
1/16
Voltage
115
Full Load Amps
2.1
Max. Vacuum
24.0 in Hg
Max. PSI Cont./Int.
50/50
Free Air CFM @ 0 PSI
0.55
Free Air CFM @ 30 PSI
0.17
Free Air CFM @ 0 Vacuum
2.41
Hz
60
Free Air CFM @ 20 Vacuum
0.07
Description

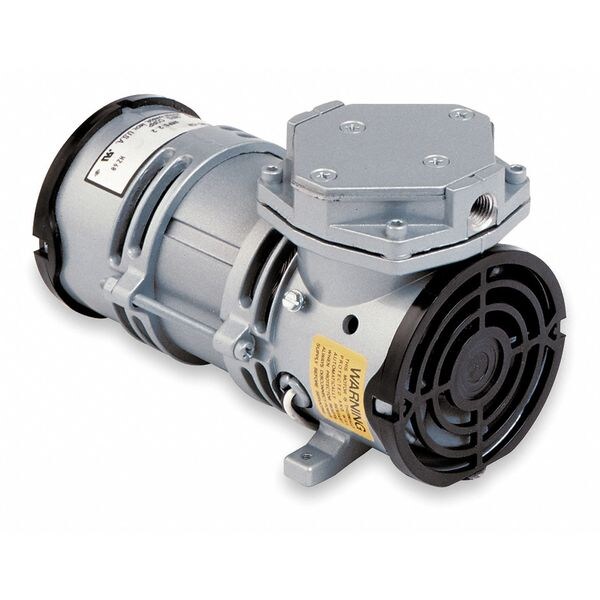

Compressor/Vacuum Pump, Compressor Type Diaphragm, 1/16 HP, Voltage 115, 60 Hz, 2.1 Full Load Amps, Inlet Size 1/4 In. NPT, Outlet Size 1/4 In. NPT, Max. Vacuum 24.0 In. Hg, Max. PSI Cont./Int. 50/50, Free Air CFM @ 0 PSI 0.55, Free Air CFM @ 30 PSI 0.17, Free Air CFM @ 0 Vacuum 2.41, Free Air CFM @ 20 Vacuum 0.07, Overall Length 7-3/16 In., Overall Width 4-5/16 In., Overall Height 4-3/4 In.
