Shop GAST

Electric Air Compressor, 3/4 hp Output

  • Mfr # 106R650-101-N600X

  • Zoro # G610880815

product price:
$
1,351.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Phase
Single
Voltage
115-120/230-240, 220-230 V
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
106R650-101-N600X
Zoro #
G610880815
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
11.85 in
Overall Height
8.91 in
Overall Width
5.68 in
Wire Rope Length
11.85 in
Length
11.85 in

Details

Item
Electric Air Compressor
Lubrication Type
Oil Free
Phase
Single
Voltage
115-120/230-240, 220-230 V
Includes
Air Filter Element
Inlet Type
NPT
Maximum Speed
1,725 RPM
Series
106R
Duty Cycle
Continuous
Plug Type
Three Prong
Life Expectancy
20,000 hr
Sound Level
70 dBA
Air Dryer Included
No Air Dryer
Pump Type
Rocking Piston
Power Source
Corded Electric
Finish
Powder Coat
Output Power
3/4 hp
Current Rating
3.8 A, 7.4 A
Maximum Operating Temperature
104 Degrees F
Enclosure Type
Open Dripproof
Free Air Flow Rate @ Maximum Pressure
1.2 cfm
Maximum Operating Pressure
145 psi
Motor Type
Capacitor Start Capacitor Run
Frequency
50 Hz, 60 Hz
Enclosed
No
Outlet Type
NPT
Electrical Connection
Wire Leads
Inlet Gender
Female
Thermal Protection
Automatic Reset
Outlet Gender
Female
Minimum Operating Temperature
41 Degrees F
Input Voltage
120V AC, 230V AC
Mounting Style
Rigid Base; Thru-Bolt
Standards
UL
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

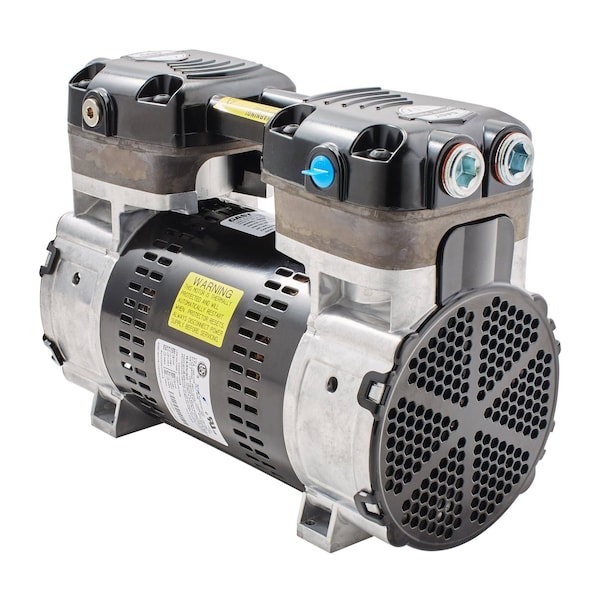

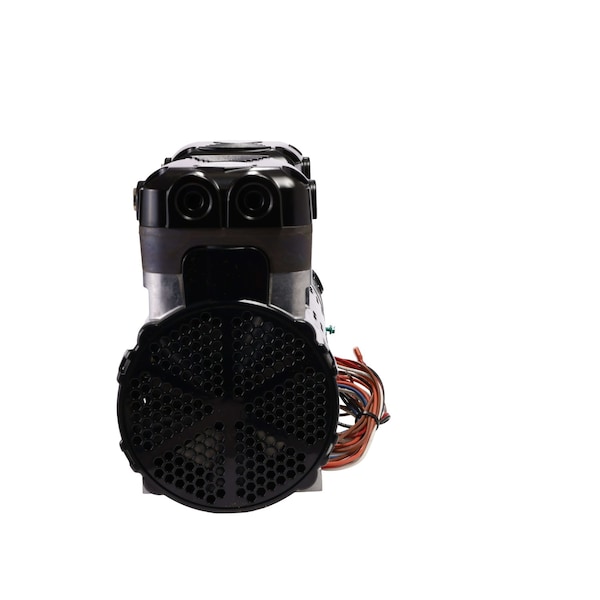

The Gast 106R650-101-N600X is an oil-free electric air compressor. It operates on 120V AC, 230V AC power at 50 Hz, 60 Hz at a rated 3/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.2 cfm at maximum pressure, and a maximum continuous pressure of 145 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.8 A, 7.4 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes a capacitor-start motor. Enclosure type is open drip-proof. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.85 x 5.68 x 8.91 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
