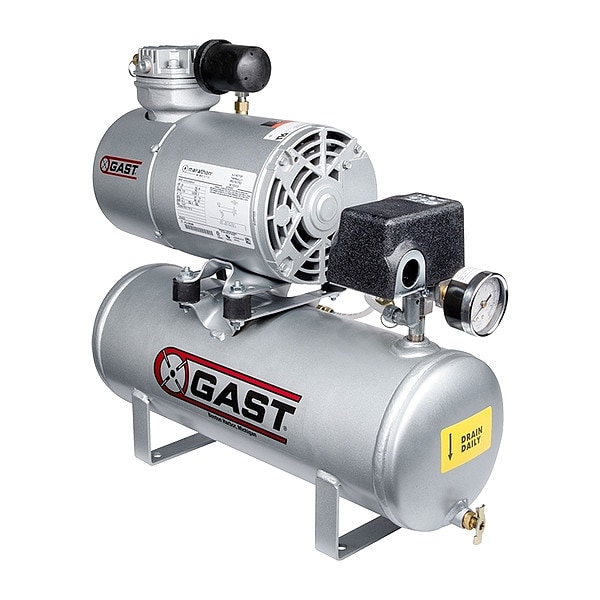

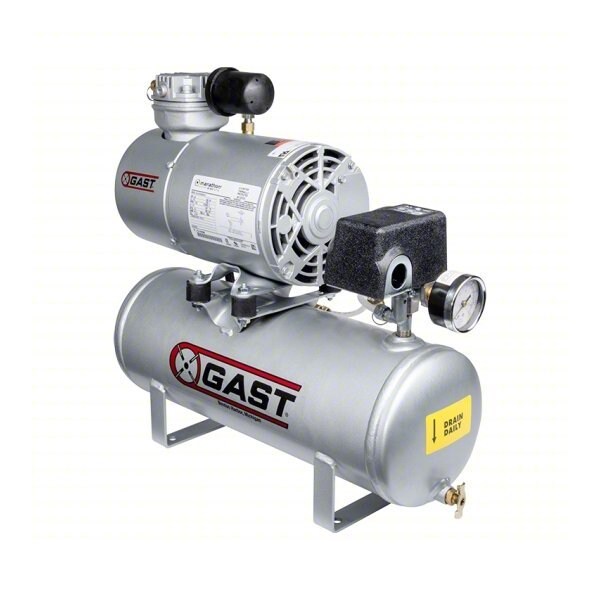

Electric Air Compressor, Tank Mounted

  • Mfr # 2LAF-46T-M200EX

  • Zoro # G3238295


product price: $2,258.21
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil-Less
HP
1/4
Phase
Single
Voltage
115
Max. Pressure
50 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2LAF-46T-M200EX
Zoro #
G3238295
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
26 in
Overall Height
21 in
Overall Width
13 in
Tank Size - Air Compressor
2.0 gal
Tank Size
2 gal.
Air Tank Size
2 gal

Details

Item
Electric Air Compressor
Lubrication Type
Oil-Less
HP
1/4
Phase
Single
Voltage
115
Max. Pressure
50 psi
Compressor Type
Tank Mounted
(F)NPT Outlet
1/4 in
Max. Pressure - Air Compressor
50 psi
ASME Tank
Yes
Tank Style - Air Compressor
Hot Dog
Style - Air Compressor
Simplex
Input Voltage - Air Compressor
120V AC
Hz
60
HP - Air Compressor
0.25 hp
Cylinder Material
Cast Iron
Compressor Package Type
Base Model
Finish
Gray Paint
Pump Location - Air Compressor
Tank Mounted
Off Pressure Switch Setting
50 psi
On Pressure Switch Setting
30 psi
Item - Air Compressor
Fire Sprinkler Air Compressor
Number of Stages - Air Compressor
1
Motor Type
Open Dripproof
Pump RPM
1,750
Lubrication Type - Air compressor
Oil Free
Number of Stages
1
Standards
UL 2125
Phase - Electrical
1
Tank Type
Horizontal
Includes
Check Valve, Inlet Filters, Pressure Safety Valve, Pressure Switch, Tubing and Fittings
Thermal Protection
InterN/Al Thermal Protector
Frequency
60 Hz
Maximum Speed
1,750 RPM
Duty Cycle
Continuous
Outlet Gender
Female
Pump Location
Top Mount
Input Voltage
120V AC
Enclosure Type
Open Dripproof
Outlet Type
NPT
Pump Type
Piston
Free Air Flow Rate @ Maximum Pressure
1.5 cfm
Maximum Operating Pressure
50 psi
Current Rating
5.8 A
Control Type
Pressure Switch
Pump Style
Simplex
Air Tank Style
Hot Dog
Output Power
0.25 hp

Description

Electric Air Compressor, Lubrication Type Oil-Less, Air Tank Style Hot Dog, Number of Stages 1, Output Power 0.25 hp, Free Air Flow Rate @ Maximum Pressure 1.5 cfm, Maximum Operating Pressure 50 psi, Air Tank Size 2 gal, Input Voltage 120V AC, Phase Single, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Piston, Pump Location Top Mount
