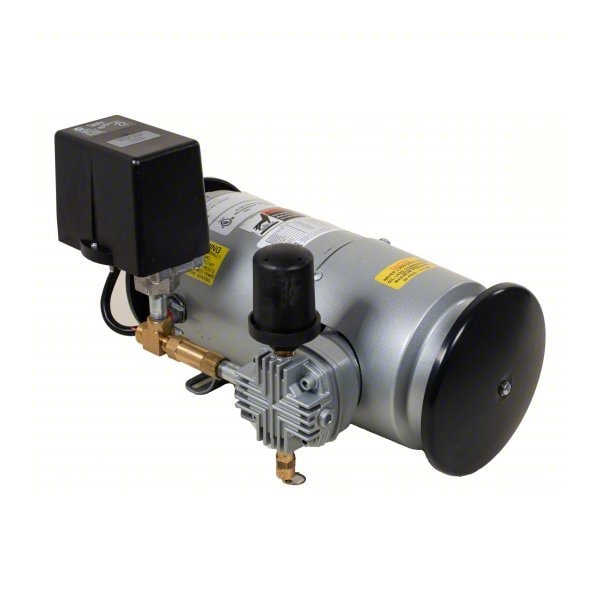

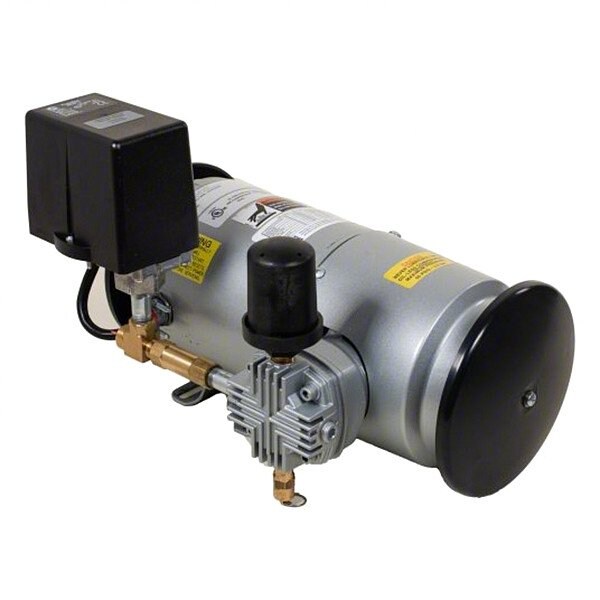

Piston Air Compressor, Piston Pump
Mfr # 1LAA-55S-M100GX
Zoro # G311677677
product price:
$
2,078.99
/ea
Free Shipping & Returns
Key Features
Number of Cylinders
2
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1LAA-55S-M100GX
- Zoro #
- G311677677
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 13.75 in
- Overall Height
- 9.54 in
- Overall Width
- 9.17 in
- Wire Rope Length
- 13.75 in
- Length
- 13.75 in
Description
The Gast 1LAA-55S-M100GX is a twin-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/6 hp output, in a tankless configuration. It provides a free-air flow rate of 1.25 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, and a measured sound level of 76 dBA. The operating temperature range is 41 to 104°F. Construction includes stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 13.75 x 9.17 x 9.54 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 1 yr.
