Gast

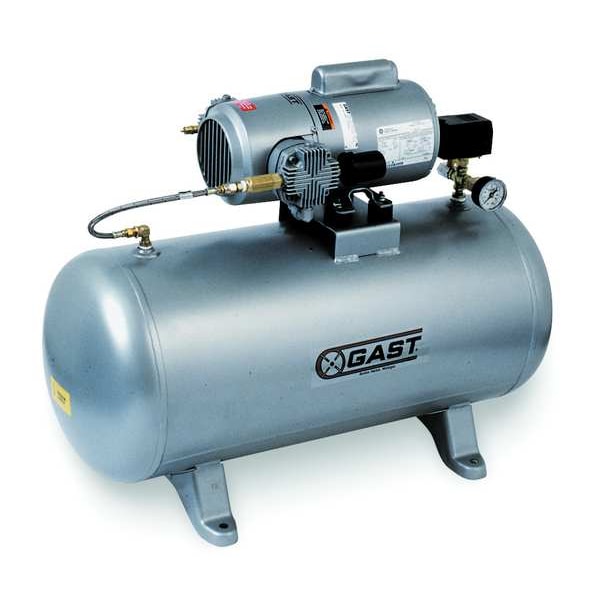

Electric Air Compressor, Tank Mounted

product price: $2,435.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tank Size 20 gal.
  • Phase Single
  • HP 3/4
  • Voltage 115/230
  • Tank Type Horizontal
See all product information

Product Information

Dimensions

Tank Size 20 gal.
Overall Height 27 in
Overall Length 33 in
Tank Size - Air Compressor 20 gal
Overall Width 16 in
Outlet Size 1/4 in
Air Tank Size 20 gal
Inlet Size 1/4 in

Details

Phase Single
HP 3/4
Voltage 115/230
Tank Type Horizontal
Max. Pressure 100 psi
Includes ASME Coded Tank, Globe valve, Manual Drain, Pressure Gauge, Pressure Safety Valve (ASME), Pressure Switch
Compressor Type Tank Mounted
Free Air CFM @ Max. Pressure 4.7
Lubrication Type Oil Free
Compressor Package Type Base Model
Standards ASME Approved
On Pressure Switch Setting 70 psi
HP - Air Compressor 0.75 hp
Style - Air Compressor Simplex
Control Automatic Start/Stop
(F)NPT Outlet 1/4 in
Number of Stages - Air Compressor 1
Amps 14.0/7.0
Free Air CFM @ Max. Pressure - Air Compressor 4.7
Off Pressure Switch Setting 100 psi
Tank Style - Air Compressor Horizontal
ASME Tank Yes
Input Voltage - Air Compressor 120V AC, 240V AC
Phase - Electrical 1
Pump Location - Air Compressor Tank Mounted
Finish Gray Paint
Number of Stages 1
Item - Air Compressor Stationary Air Compressor
Lubrication Type - Air compressor Oil Free
Item Electric Air Compressor
Max. Pressure - Air Compressor 100 psi
Pump Type Piston
Duty Cycle Continuous
Frequency 50 Hz, 60 Hz
Valve Type Globe
Output Power 0.75 hp
Pump Location Top Mount
Pump Style Simplex
Maximum Operating Pressure 100 psi
Outlet Gender Female
Input Voltage 120V AC, 240V AC
Air Tank Style Horizontal
Current Rating 14 A, 7 A
Control Type Automatic On/Off
Free Air Flow Rate @ Maximum Pressure 4.7 cfm
Outlet Type NPT
Type Tank Mounted Oil-less

Description

Electric Air Compressor, Lubrication Type Oil Free, Air Tank Style Horizontal, Number of Stages 1, Output Power 0.75 hp, Free Air Flow Rate @ Maximum Pressure 4.7 cfm, Maximum Operating Pressure 100 psi, Air Tank Size 20 gal, Input Voltage 120V AC, 240V AC, Phase Single, Frequency 50 Hz, 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Piston, Pump Location Top Mount
