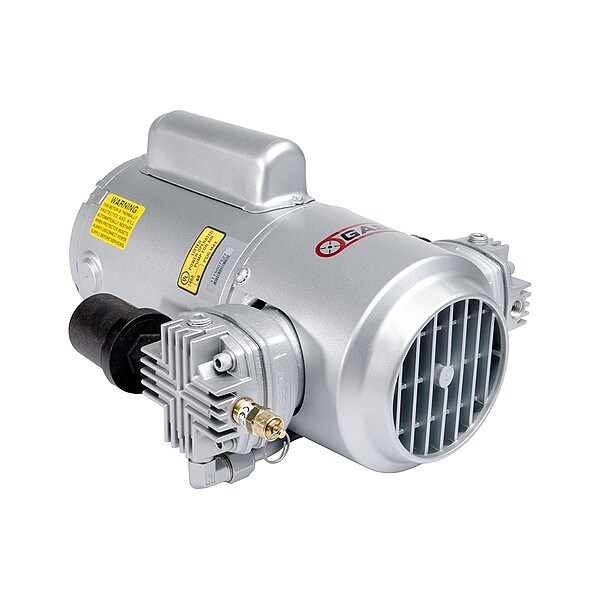

Piston Air Comp., 3/4HP, 115/208-230V, 1Ph

  • Mfr # 5HCD-43-M550NGX

  • Zoro # G0397083

product price:
$
1,165.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
HP
3/4 hp
Phase
Single
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5HCD-43-M550NGX
Zoro #
G0397083
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
14.5 in
Overall Height
8.875 in
Overall Width
12.062 in
Wire Rope Length
14.5 in
Length
14.5 in

Details

Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
HP
3/4 hp
Phase
Single
Voltage
115/208-230V AC
Sound Rating
63 dBA @ 60 psi
Free Air CFM @ 50 PSI
3.4
Full Load Amps
14/7 A
Free Air CFM @ 100 PSI
2.5
Max. PSI Cont./Int.
100/100
Free Air CFM @ 40 PSI
3.6
Thermal Protection
Automatic Reset
Valve
Corrosion Resistant Sandwich
Temp. Range
32 Degrees to 104 Degrees F
Motor Type
Shaded pole
Standards
CE, CUR
Finish
Paint
Design
Oil-less
Cylinder Material
Aluminum
Hz
60
Application
Aeration, Beverage Dispensing and Various OEM, Business Machines, Packaging, Photographic Processing, Requiring Intermittent and Continuous Duty
Free Air CFM @ 0 PSI
4.65
RPM
1725
Free Air CFM @ 20 PSI
4.1
Maximum Intermittent Pressure
100 psi
Duty Cycle
Continuous
Free Air Flow Rate
4.7 cfm
Air Tank Style
Tankless
Power Source
Corded Electric
Frequency
60 Hz
Output Power
0.75 hp
Electrical Connection
Wired Leads
Maximum Operating Temperature
104 Degrees F
Sound Level
63 dBA
Minimum Operating Temperature
32 Degrees F
Control Type
Pressure Switch
Inlet Type
NPT
Piston Type
Reciprocating
Pump Type
Piston
Maximum Continuous Pressure
100 psi
Outlet Type
NPT
Valve Type
Corrosion Resistant Sandwich
Current Rating
14 A, 7 A
Maximum Speed
1,725 RPM
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 5HCD-43-M550NGX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/208-230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 2.5 CFM at 100 psi up to 4.7 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 14/7 A, and a measured sound level of 63 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and corrosion resistant sandwich valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.5 x 12.062 x 8.875 in (L x W x H). Duty cycle: continuous. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, and photographic processing.
