  11. Gast Standard 2Hah-10-M200X Piston Pump
Shop All Piston Air Compressors & Vacuum Pumps
Gast

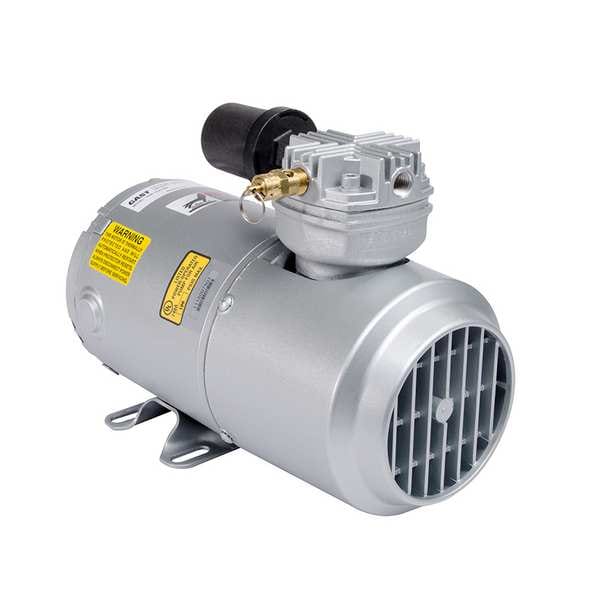

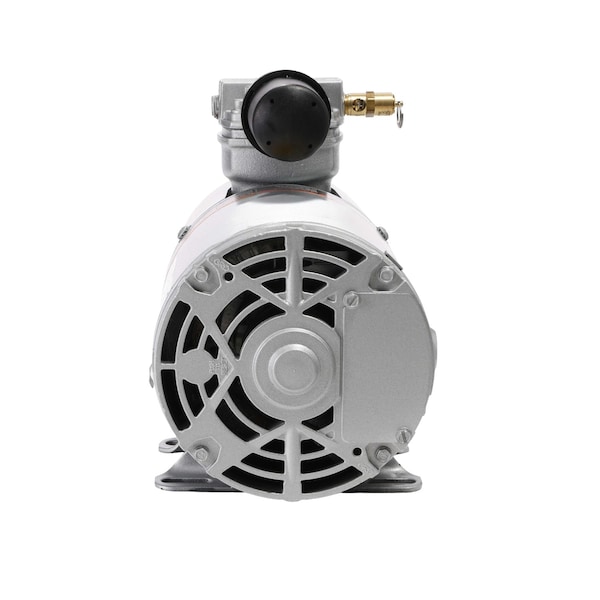

Gast Standard 2Hah-10-M200X Piston Pump

product price: $817.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Overall Height 8.385 in
  • Outlet Size 1/4 in
  • Standards NFPA 13
  • Cylinder Material Aluminum
See all product information

Product Information

Dimensions

Overall Height 8.385 in
Outlet Size 1/4 in
Overall Length 12.913 in
Inlet Size 1/4 in
Overall Width 5.669 in
Mounting Hole Diameter 7/20 in
Stroke Length 5/8 in

Details

Item Piston Air Compressor
Voltage 115V AC
Standards NFPA 13
Cylinder Material Aluminum
Lubrication Type Oilless
Finish Painted
Thermal Protection Yes
Number of Cylinders 1
Phase Single
Air Tank Style Tankless
Free Air Flow Rate 1.72 cfm
Maximum Continuous Pressure 100 psi
Minimum Operating Temperature 41 Degrees F
Maximum Speed 1,725 RPM
Sound Level 72 dBA
Output Power 0.25 hp
Maximum Operating Temperature 104 Degrees F
Outlet Type NPT
Maximum Intermittent Pressure 100 psi
Pump Type Piston
Inlet Type NPT
Piston Type Reciprocating
Power Source Corded Electric
Control Type Pressure Switch
Series Gast
Frequency 60 Hz
Valve Material Stainless Steel
Duty Cycle Continuous
Outlet Gender Female
Engine Enclosure Material Steel
Mounting Style Thru-Bolt
Compressor/Pump Enclosure Material Aluminum/Plastic
Enclosure Type Clean Dust Free
Enclosure Rating IP20
Inlet Gender Female
Current Rating 6.95 A
Exhaust Location Front
Electrical Connection Spade Terminal
Motor Design Split-Phase Induction
Life Expectancy 16,000 hr
Valve Type Reed

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 1, Output Power 0.25 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 1.72 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female
