Compressor, 1,725 RPM, 115V AC
Mfr # 2LAF-10-M200X
Zoro # G403664509
product price:
$
1,149.99
/ea
Free Shipping & Returns
Key Features
Lubrication Type
Oil Less
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2LAF-10-M200X
- Zoro #
- G403664509
- UPC #
- -
- Country of Origin
- United States
- Item
- Compressor
- Lubrication Type
- Oil Less
- Phase
- Single
- Voltage
- 115V AC
- Thermal Protection
- Yes
- Inlet Type
- NPT
- Outlet Type
- NPT
- Pump Type
- Piston
- Maximum Operating Temperature
- 104 Degrees F
- Output Power
- 0.25 hp
- Exhaust Location
- Top
- Frequency
- 60 Hz
- Piston Type
- Reciprocating
- Free Air Flow Rate
- 2.1 cfm
- Duty Cycle
- Continuous
- Maximum Intermittent Pressure
- 50 psi
- Maximum Continuous Pressure
- 50 psi
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Speed
- 1,725 RPM
- Sound Level
- 75 dB
Description

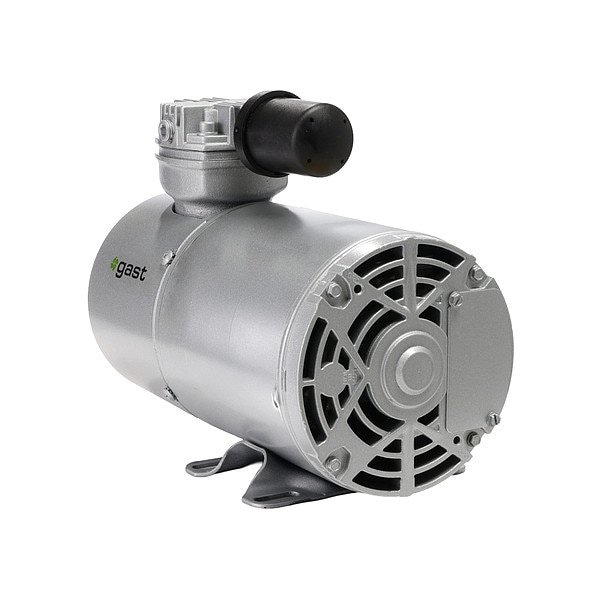

The Gast 2LAF-10-M200X is an oil-free compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2.1 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, and a measured sound level of 75 dB. The operating temperature range is 32 to 104°F. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 26 x 24 x 13.5 in (L x W x H). Duty cycle: continuous.
