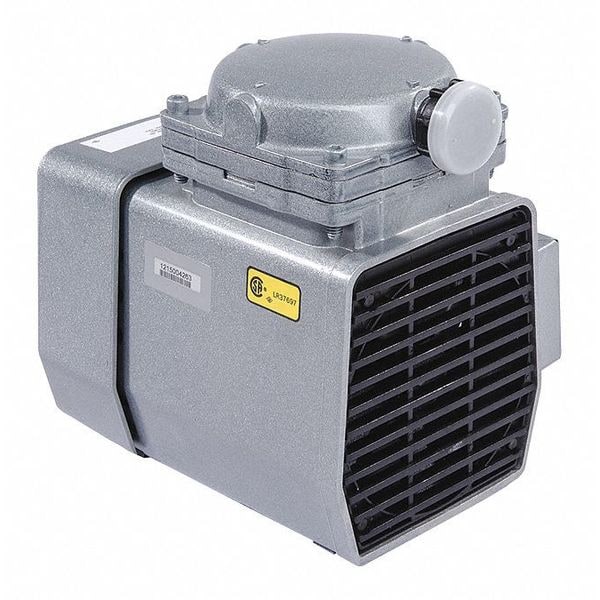

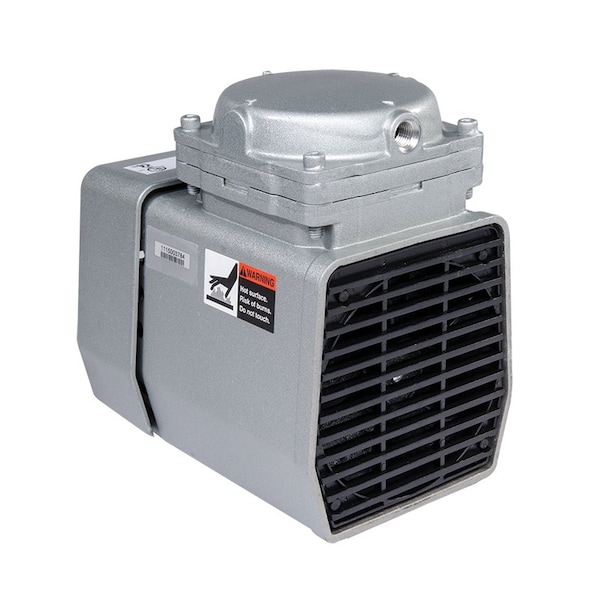

Gast Standard Doa-P501-Fd Diaphragm Pump
Mfr # DOA-P501-FD
Zoro # G1176178
product price:Â
$
601.99
/ea
Free Shipping & Returns
Key Features
Compressor Type
Diaphragm
Voltage
220/230V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Height
7.68 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DOA-P501-FD
- Zoro #
- G1176178
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Height
- 7.68 in
- Overall Length
- 7.66 in
- Overall Width
- 5.35 in
- Wire Rope Length
- 7.66 in
- Length
- 7.66 in
Details
- Item
- Compressor/Vacuum Pump
- Compressor Type
- Diaphragm
- Voltage
- 220/230V AC
- Output Power
- 21/64 hp
- Weight
- 14.5 lb
- Maximum Continuous Pressure
- 60 psi
- Pump Type
- Diaphragm
- Flow Rate @ 0 psi @ 50 Hz
- 1.6 cfm
- Minimum Operating Temperature
- 41 Degrees F
- Maximum Vacuum
- 25.5 in Hg
- Flow Rate @ 0 psi
- 1.9 cfm
- Sound Level
- 70 dBA
- Inlet Connection Type
- NPT
- Maximum Operating Temperature
- 104 Degrees F
- Outlet Connection Type
- NPT
- Maximum Flow Rate
- 1.9 cfm @ 0 psi
- Maximum Intermittent Pressure
- 60 psi
Description
Compressor/Vacuum Pump, Output Power 21/64 hp, Voltage 220/230V AC, Maximum Vacuum 25.5 in Hg, Maximum Continuous Pressure 60 psi, Maximum Intermittent Pressure 60 psi, Maximum Flow Rate 1.9 cfm @ 0 psi, Inlet Size 1/4 in, Inlet Connection Type NPT, Outlet Size 1/4 in, Outlet Connection Type NPT, Compressor Type Diaphragm
