Thomas

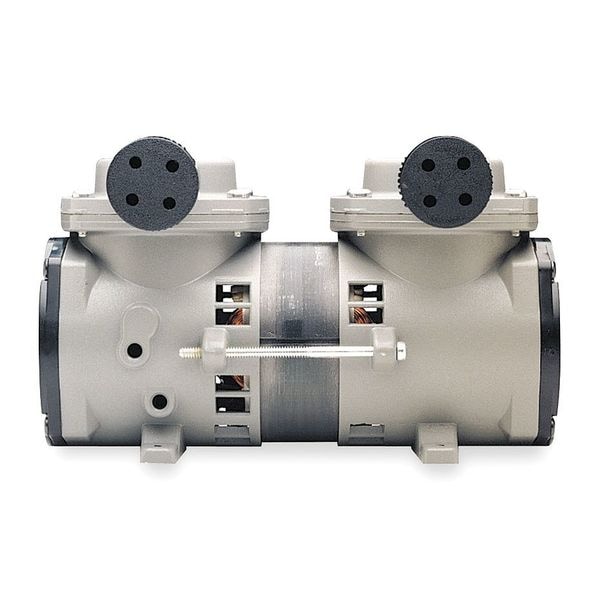

Compressr/Vacuum Pump, 1/20 HP, 60 Hz, 115V

original price: $405.50
9% off
new price: $368.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Compressor Type Diaphragm
  • HP 1/20 hp
  • Voltage 115V AC
  • Full Load Amps 1.6
  • Max. Vacuum 23.2 in Hg
See all product information

Product Information

Dimensions

Inlet Size 1/8 in
Outlet Size 1/8 in
Overall Height 4.75 in
Overall Width 4.25 in
Overall Length 8 in

Details

Item Compressor/Vacuum Pump
Compressor Type Diaphragm
HP 1/20 hp
Voltage 115V AC
Full Load Amps 1.6
Max. Vacuum 23.2 in Hg
Max. PSI Cont./Int. 5/5
Free Air CFM @ 0 PSI 1.65
Free Air CFM @ 0 Vacuum 1.65
Hz 60
Free Air CFM @ 20 Vacuum 0.17
Maximum Continuous Pressure 5 psi
Pump Type Diaphragm
Inlet Connection Type NPT
Current Rating 1.6 A
Maximum Flow Rate 1.65 cfm @ 0 psi
Frequency 60 Hz
Flow Rate @ 0 psi 1.65 cfm
Maximum Intermittent Pressure 5 psi
Maximum Vacuum 23.2 in Hg
Outlet Connection Type NPT
Output Power 3/64 hp

Description

Compressor/Vacuum Pump, Output Power 3/64 hp, Voltage 115V AC, Maximum Vacuum 23.2 in Hg, Maximum Continuous Pressure 5 psi, Maximum Intermittent Pressure 5 psi, Maximum Flow Rate 1.65 cfm @ 0 psi, Inlet Size 1/8 in, Inlet Connection Type NPT, Outlet Size 1/8 in, Outlet Connection Type NPT, Compressor Type Diaphragm, Current Rating 1.6 A
