Gast

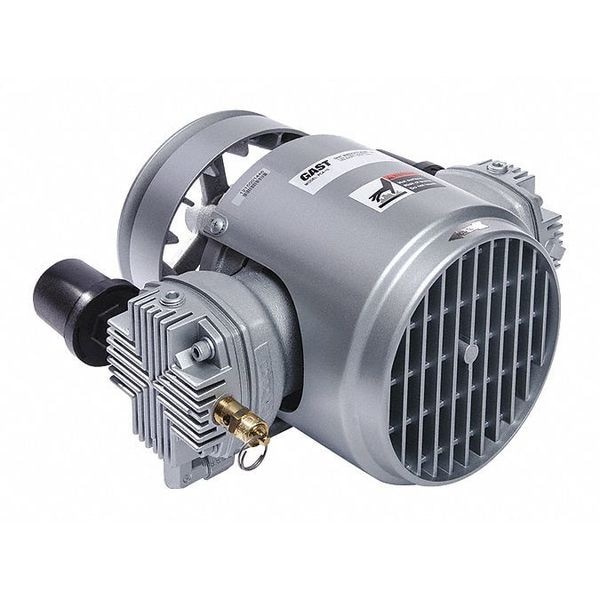

Pca-10 Piston Pump Sep Drive

product price: $913.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Inlet Size 1/4 in
  • Overall Length 9.881 in
  • Outlet Size 1/4 in
  • Overall Width 6.102 in
See all product information

Product Information

Dimensions

Inlet Size 1/4 in
Overall Length 9.881 in
Outlet Size 1/4 in
Overall Width 6.102 in
Overall Height 6.889 in
Mounting Hole Diameter 27/100 in
Stroke Length 3/4 in

Details

Item Piston Air Compressor
Voltage 115V AC
Lubrication Type Oilless
Finish Painted
Cylinder Material Aluminum
Number of Cylinders 2
Thermal Protection No
Sound Level 84 dBA
Maximum Continuous Pressure 125 psi
Air Tank Style Tankless
Maximum Operating Temperature 104 Degrees F
Maximum Speed 2,000 RPM
Minimum Operating Temperature 41 Degrees F
Output Power 1.7 hp
Free Air Flow Rate 6.1 cfm
Outlet Type NPT
Piston Type Reciprocating
Inlet Type NPT
Maximum Intermittent Pressure 125 psi
Duty Cycle Continuous
Exhaust Location Front
Compressor/Pump Enclosure Material Aluminum/Plastic
Enclosure Type Clean Dust Free
Pump Type Piston
Valve Material Stainless Steel
Power Source Corded Electric
Mounting Style Thru-Bolt
Outlet Gender Female
Series Gast
Control Type Separate Drive
Inlet Gender Female
Valve Type Reed
Life Expectancy 16,000 hr

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 2, Output Power 1.7 hp, Phase Not Applicable, Voltage 115V AC, Maximum Continuous Pressure 125 psi, Maximum Intermittent Pressure 125 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 6.1 cfm, Maximum Speed 2,000 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female
