Piston Air Compressor, Size 1/4", 1615 RPM
Mfr # 3HBB-19-M323A
Zoro # G0664925
product price:
$
1,592.99
/ea
Free Shipping & Returns
Key Features
Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
24V DC
Inlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3HBB-19-M323A
- Zoro #
- G0664925
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 12.16 in
- Overall Height
- 5.82 in
- Overall Width
- 10.93 in
- Stroke Length
- 1/2 in
- Mounting Hole Diameter
- 9/25 in
- Wire Rope Length
- 12.16 in
- Length
- 12.16 in
Description

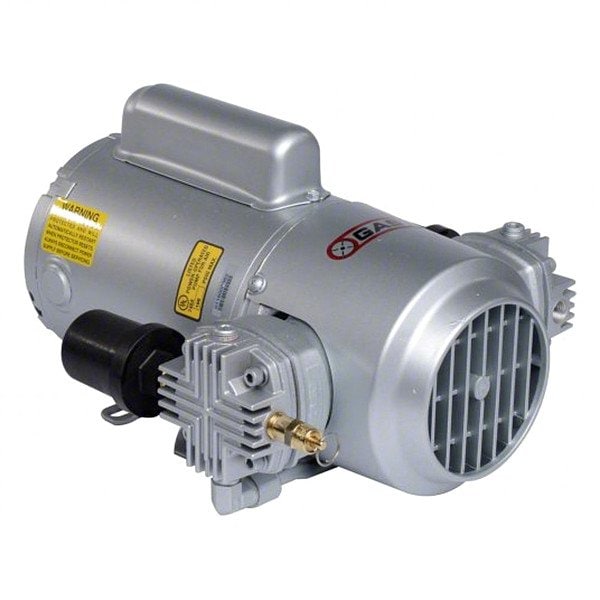

The Gast 3HBB-19-M323A is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It runs on 24V DC power at a rated 0.42 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2.4 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,615 RPM, a full-load current of 19.5 A, and a measured sound level of 75 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a brushed DC motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 12.16 x 10.93 x 5.82 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 2,000 hr.
