Shop GAST

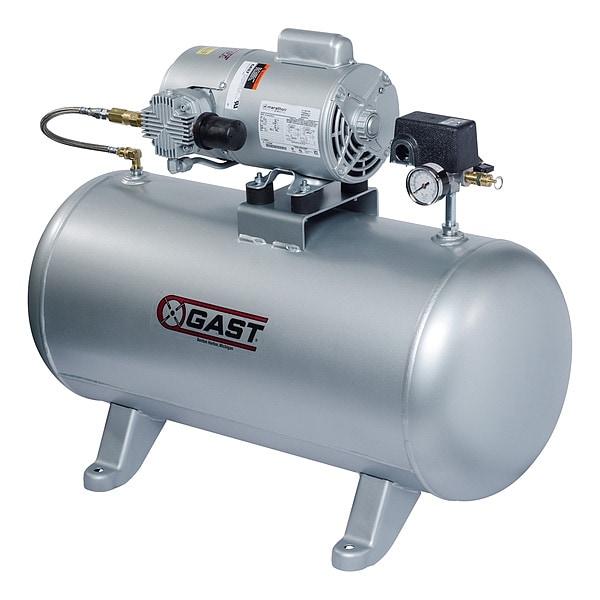

Piston Air Compressor, 0.333 hp, 3.1 cfm

  • Mfr # 3LBA-46T-M300AX

  • Zoro # G610866130

product price:
$
3,665.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
4
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3LBA-46T-M300AX
Zoro #
G610866130
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor,0.333 hp,3.1 cfm
Lubrication Type
Oilless
Number of Cylinders
4
Phase
Single
Voltage
115V AC
Standards
UL 1450
Finish
Painted
Thermal Protection
Yes
Cylinder Material
Aluminum
ASME Tank
Yes
Free Air Flow Rate
2 cfm
Pump Type
Piston
Power Source
Corded Electric
Mounting Style
Foot
Valve Material
Stainless Steel
Electrical Connection
Wire Leads
Outlet Gender
Female
Inlet Gender
Female
Flow Rate @ 0 psi @ 50 Hz
3 cfm
Minimum Operating Temperature
41 Degrees F
Series
Gast
Duty Cycle
Continuous
Flow Rate @ 20 psi @ 50 Hz
2.2 cfm
Current Rating
6.6 A
Maximum Operating Temperature
104 Degrees F
Piston Type
Reciprocating
Outlet Type
NPT
Air Tank Style
Horizontal
Maximum Intermittent Pressure
50 psi
Control Type
Pressure Switch
Life Expectancy
1 yr
Compressor/Pump Enclosure Material
Stainless Steel
Flow Rate @ 50 psi @ 50 Hz
2 cfm
Maximum Continuous Pressure
50 psi
Frequency
60 Hz
Flow Rate @ 40 psi @ 50 Hz
2.1 cfm
Exhaust Location
Top
Sound Level
75 dBA
Output Power
0.333 hp
Motor Design
Open
Valve Type
Reed
Inlet Type
NPT
Maximum Speed
1,725 RPM
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 3LBA-46T-M300AX is an oil-free piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, a full-load current of 6.6 A, and a measured sound level of 75 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, an open motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 26 x 13.5 x 23 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 1 yr.
